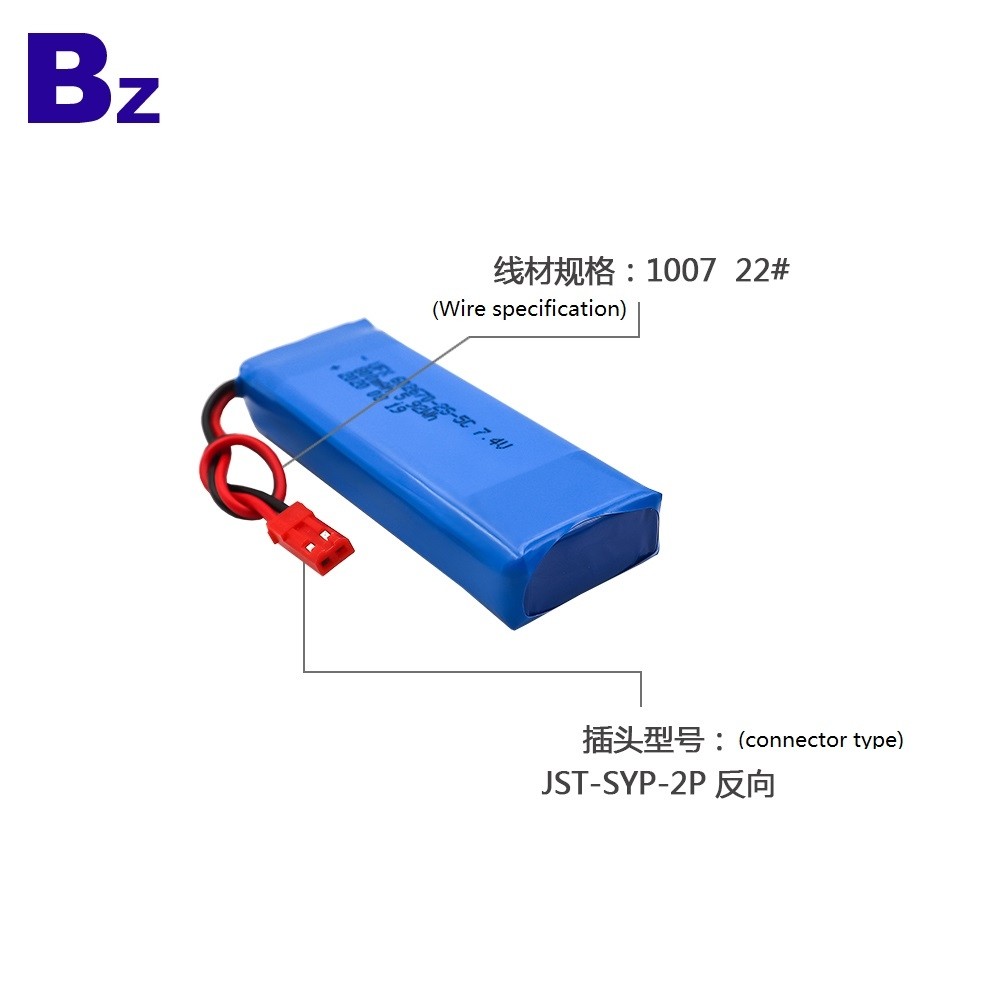

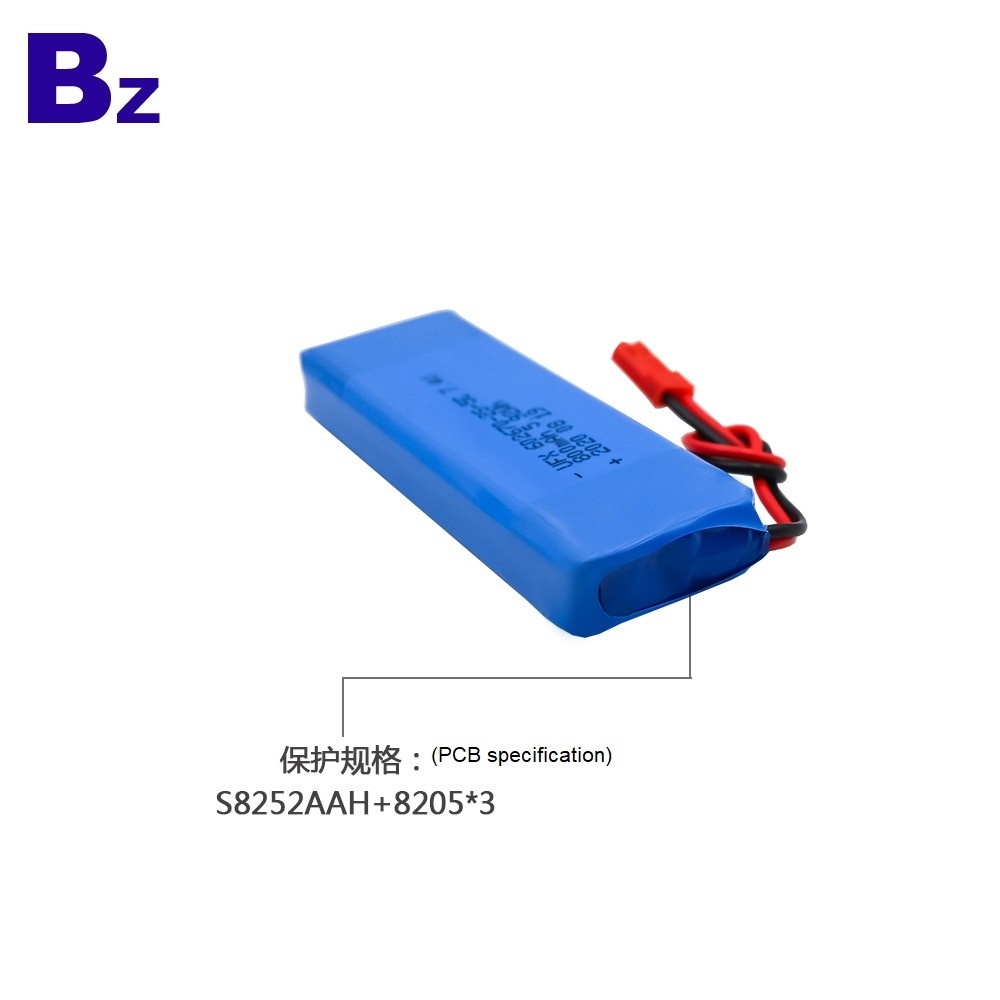

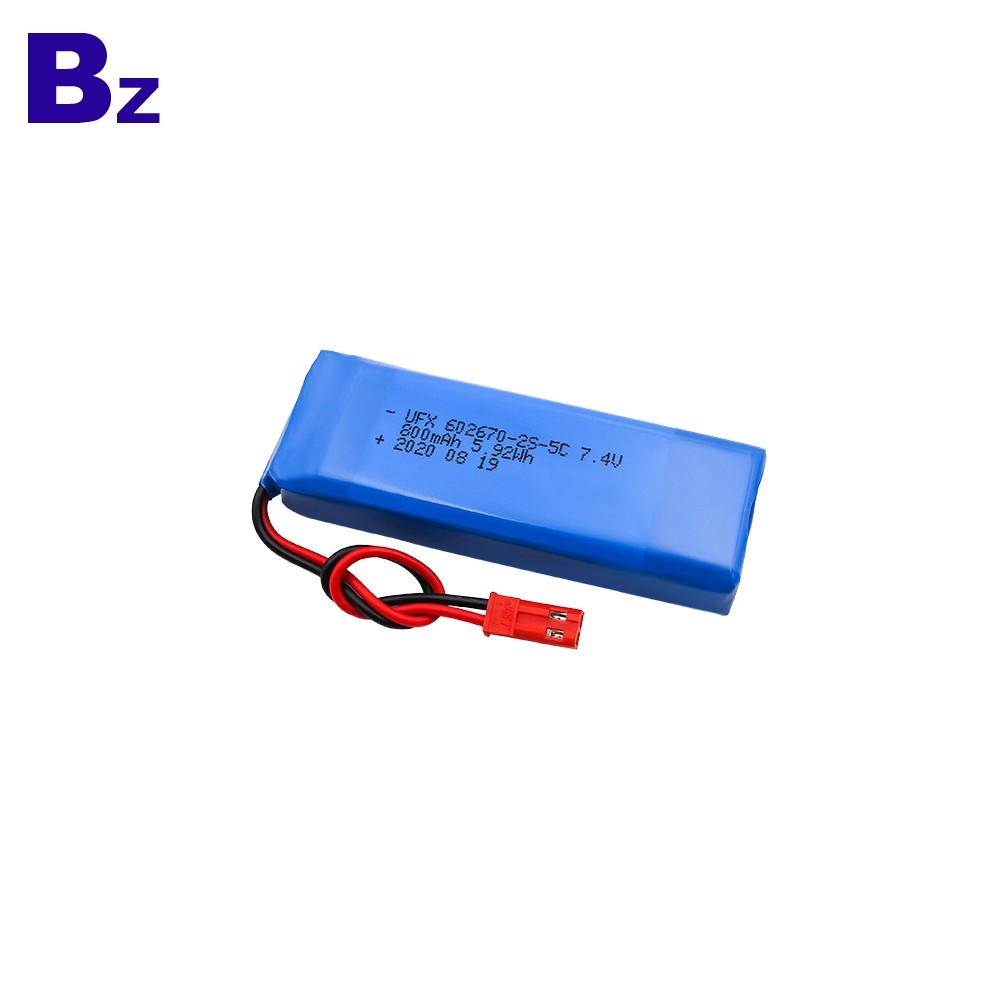

무대 조명용 High Rate Lipo 배터리 사용자 지정 - UFX 602670-2S 800mAh 7.4V 5C 리튬 폴리머 배터리

$3.08
In stock
SKU
UFX 602670-2S 800mAh 7.4V 5C

가격 : US $ 1.2-1.5 / 암페어
Min. 주문 : 2,000 암페어
주문 하시려면 저희에게 문의하십시오!

     원산지 : 광동, 중국
     브랜드 이름 : UFX
     모델 번호 : 602670-2S
     유형 : 리튬 폴리머
     명목상 전압 : 7.4V
     크기 : 12 * 26 * 73mm
     공칭 용량 : 800mAh
     제품 이름 : UFX 602670-2S 리튬 이온 배터리
     보증 : 1 년
     무게 : 32g
     주기 생활 : 500 배
     응용 프로그램 : 무대 조명 배터리
     증명서 : UN38.3 / CE / MSDS / ROHS
     지불 : Paypal.TT.Escrow.Western Union
     최대 충전 전류 : 1C



리튬 이온 배터리


800mAh 무대 조명 리튬 이온 배터리

602670-2S 800mAh 7.4V 5C 리튬 폴리머 배터리

High Rate 5C 800mAh Lipo 배터리 사용자 지정


Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

820mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

800mAh

2

Nominal Voltage

7.4V

Mean Operation Voltage

3

Voltage at end of

6.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

8.4±0.03V



5

Internal Impedance

≤175mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 8.4V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 6.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 8.4V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 6.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

5 C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max73mm

Width: max26mm
Thickness: max12mm

Initial  Dimension
