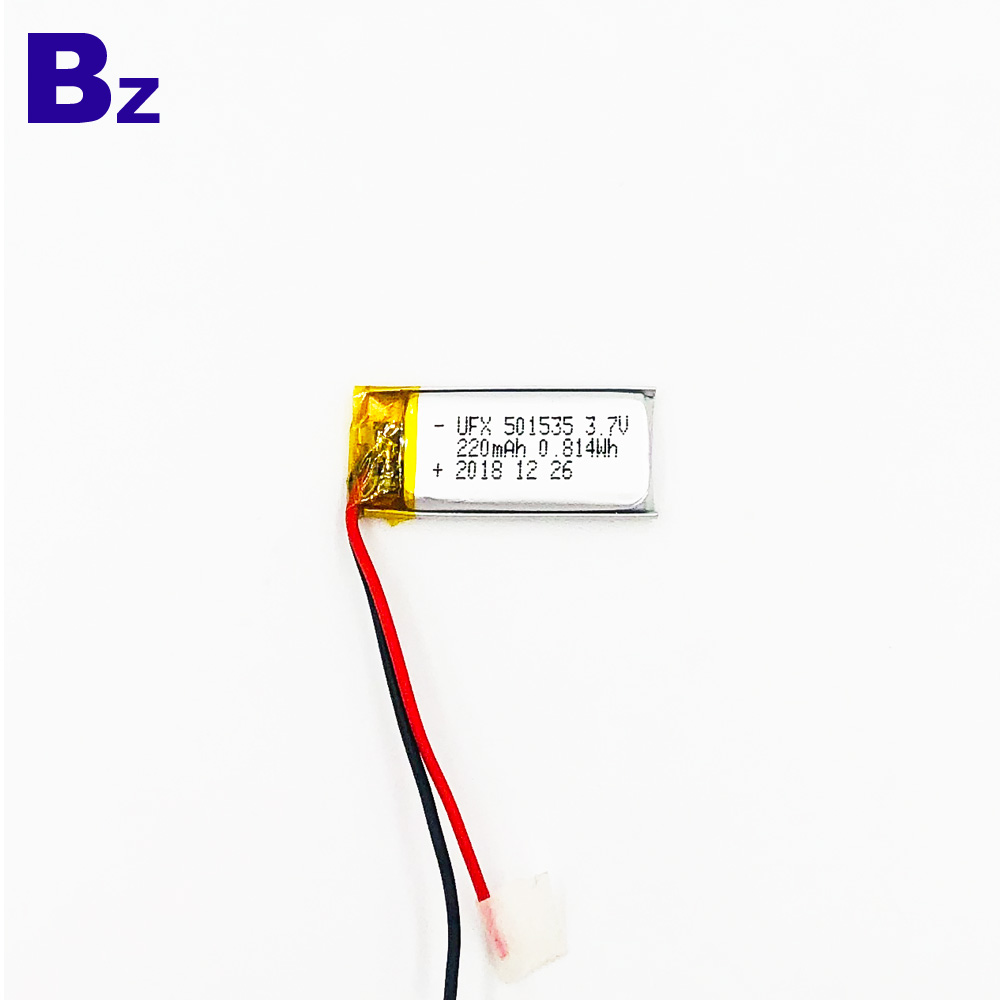

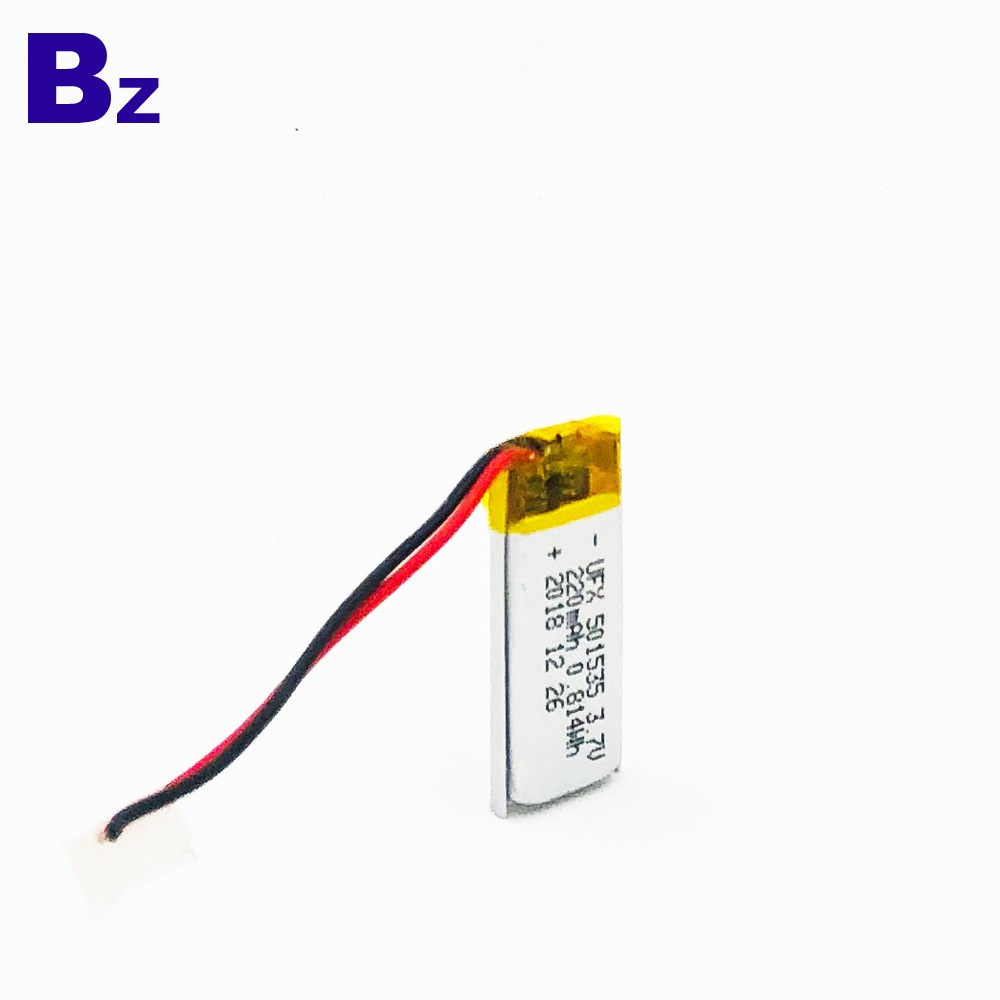

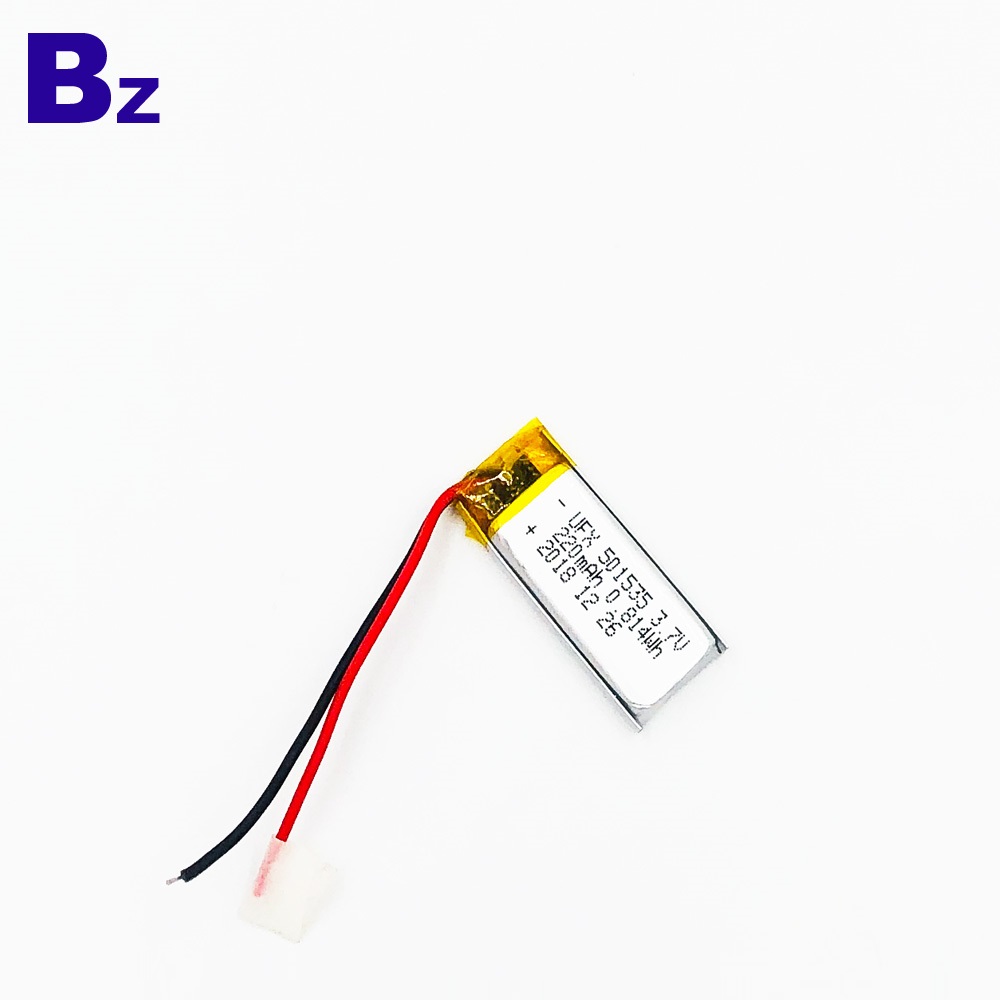

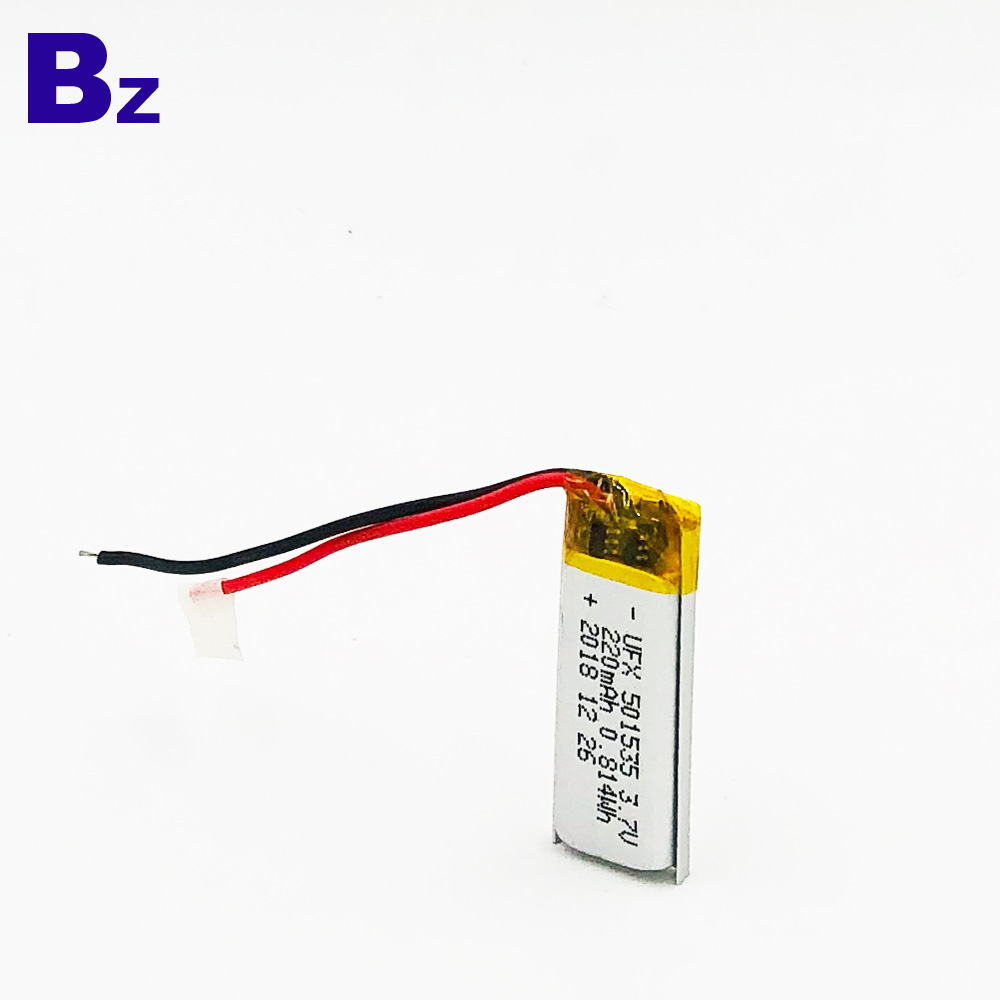

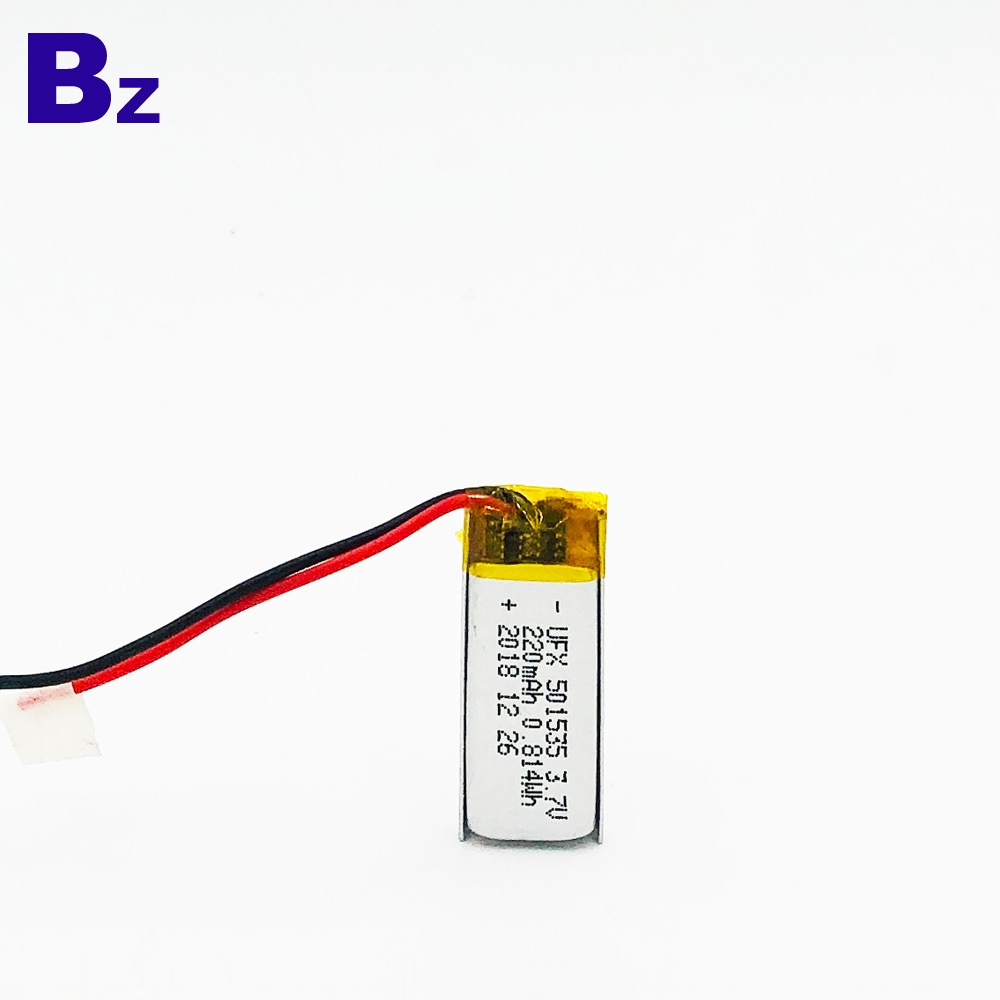

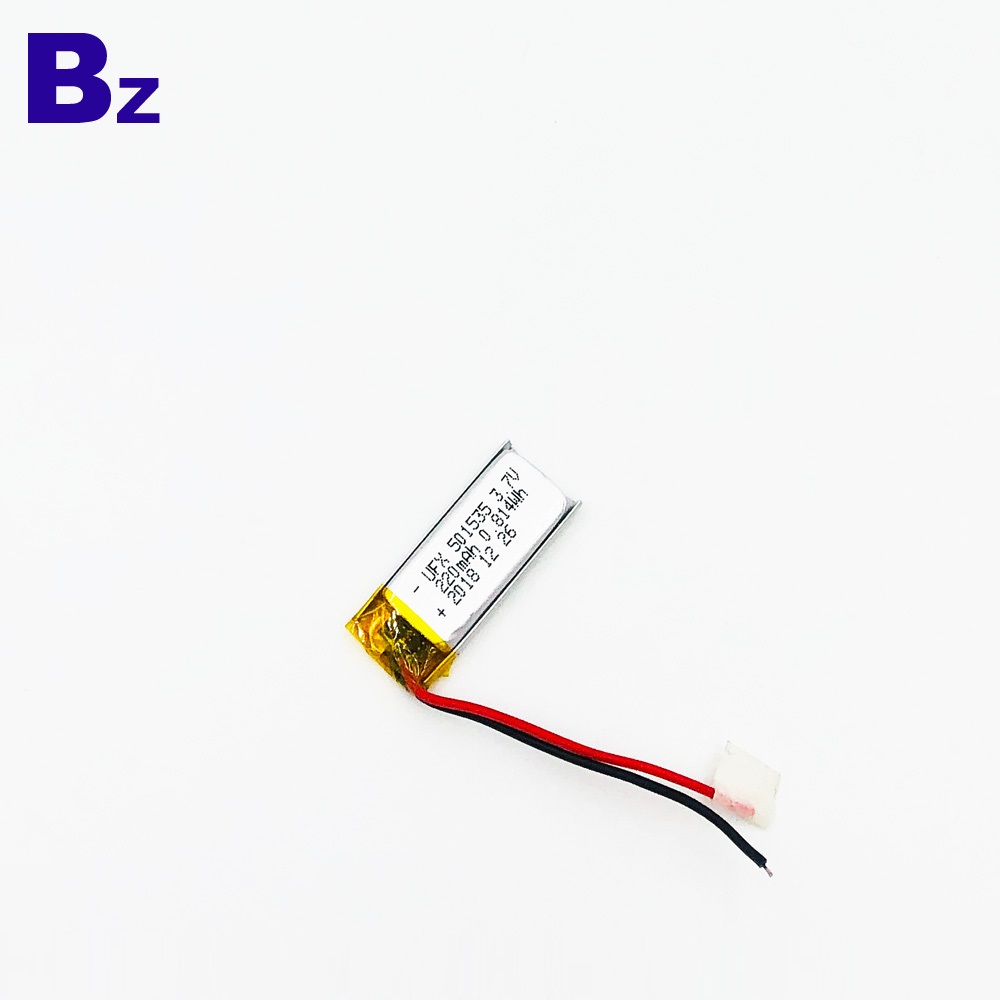

인터폰 용 고성능 충전 용 리포 배터리 UFX 501535 220mAh 3.7V 리튬 폴리머 배터리

$1.20
In stock
SKU
UFX 501535

FOB 가격 : US $ 1.2-1.5 / 암페어
최소 주문 수량 : 1000 Ampere
주문 문의하시기 바랍니다!

  •      원산지 : 중국 광둥, 광동
         브랜드 이름 : UFX
         모델 번호 : 501535
         유형 : Li 중합체
         정격 전압 : 3.7V
         크기 : 5 * 15 * 37mm
         정격 용량 : 220mAh
         제품명 : UFX 501535 리튬 이온 배터리
         보증 기간 : 1 년
         무게 : 6g
         사이클 수명 : 500 회
         신청 : 인터폰
         인증서 : UN38.3 / MSDM / CE / ROHS
         지불 : Paypal.TT.Escrow.Western Union
         최대 충전 전류 : 1C

리튬 이온 배터리

UFX 501535 220mAh 3.7V 리튬 폴리머 배터리

501535 220mAh 3.7V 리튬 폴리머 배터리

501535 220mAh 3.7V 배터리220mAh 3.7V 배터리

220mAh 인터폰 용 고성능 충전 용 리포 배터리

3.7V 고성능 충전식 Lipo 배터리

Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

240mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

220mAh

2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of

3.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

4.2±0.03V



5

Internal Impedance

≤215mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 4.2V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 3.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 4.2V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 3.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max37mm

Width: max15mm
Thickness: max5mm

Initial  Dimension
