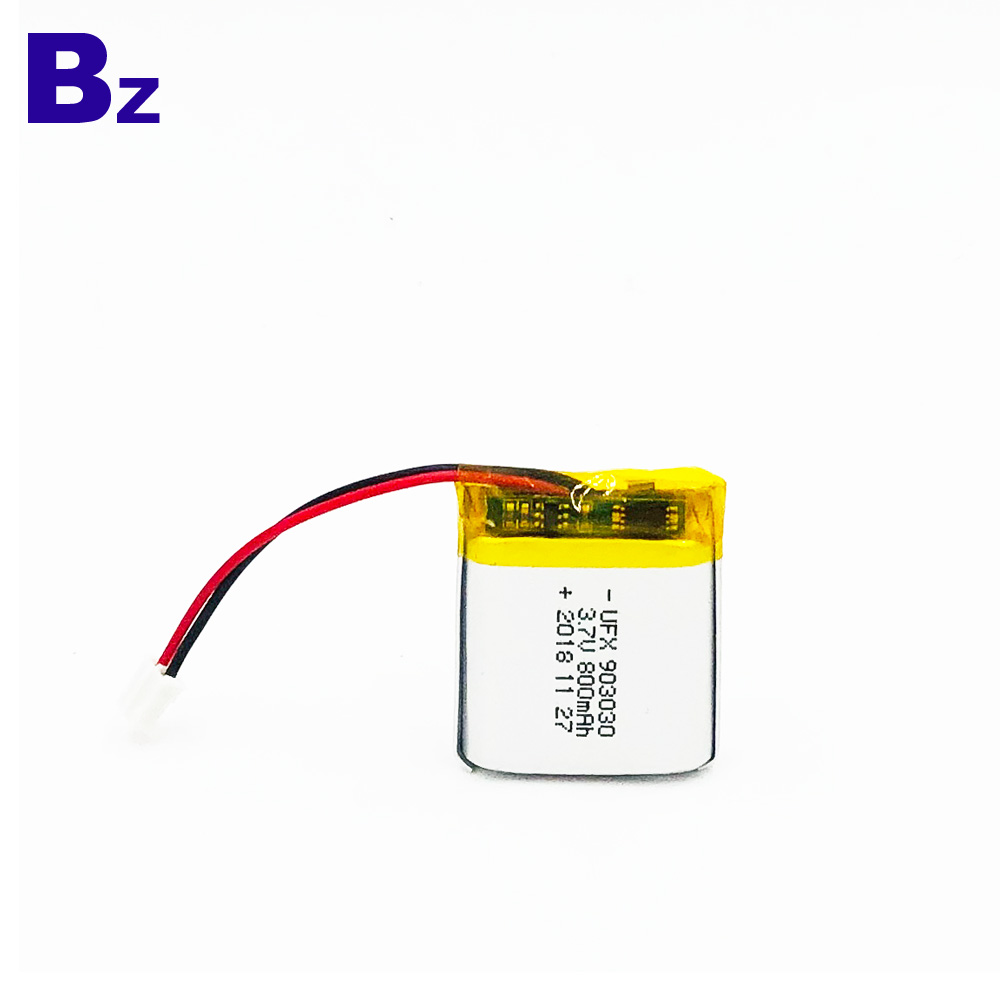

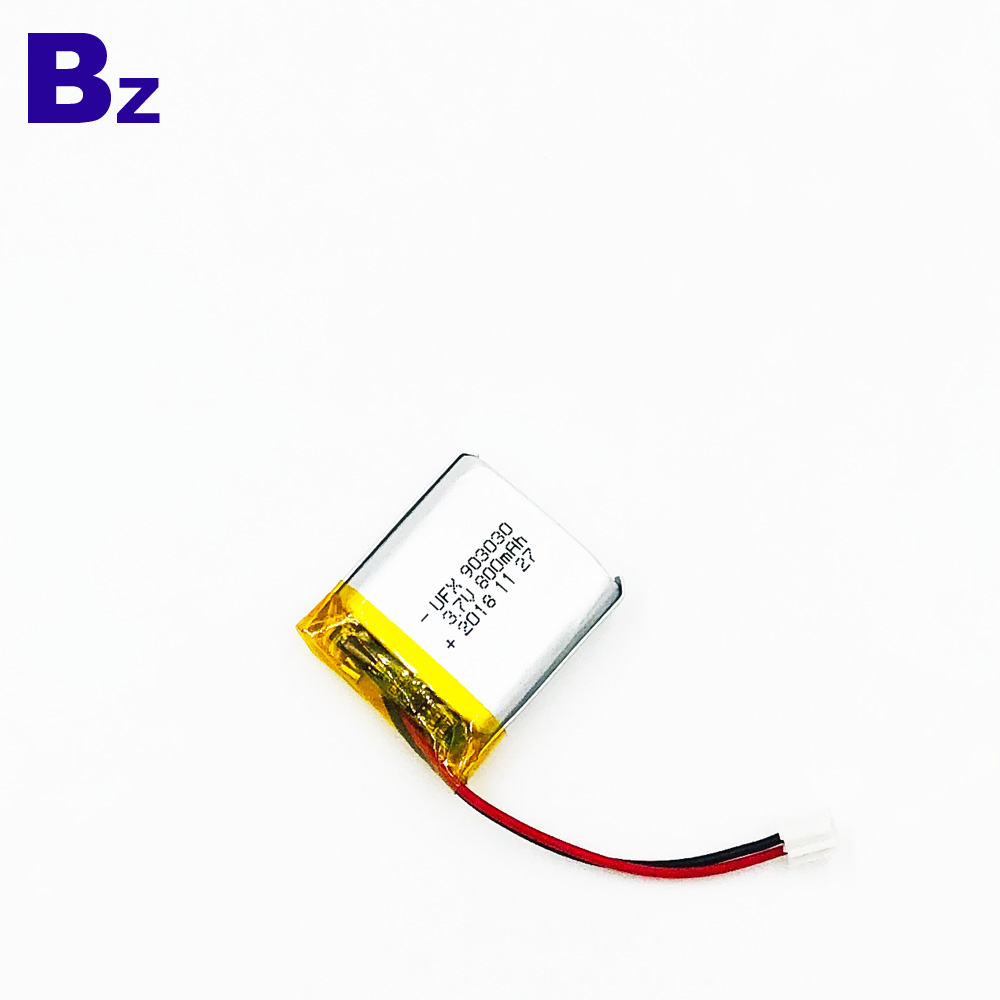

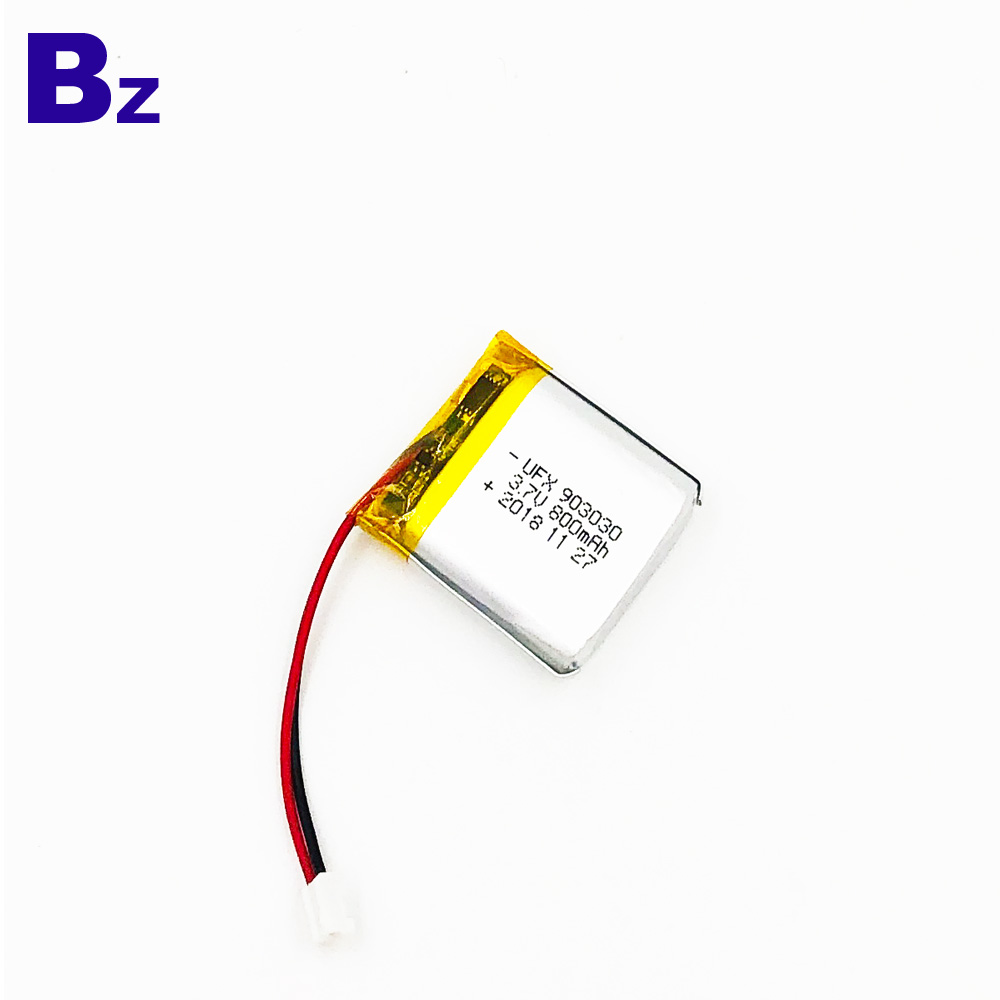

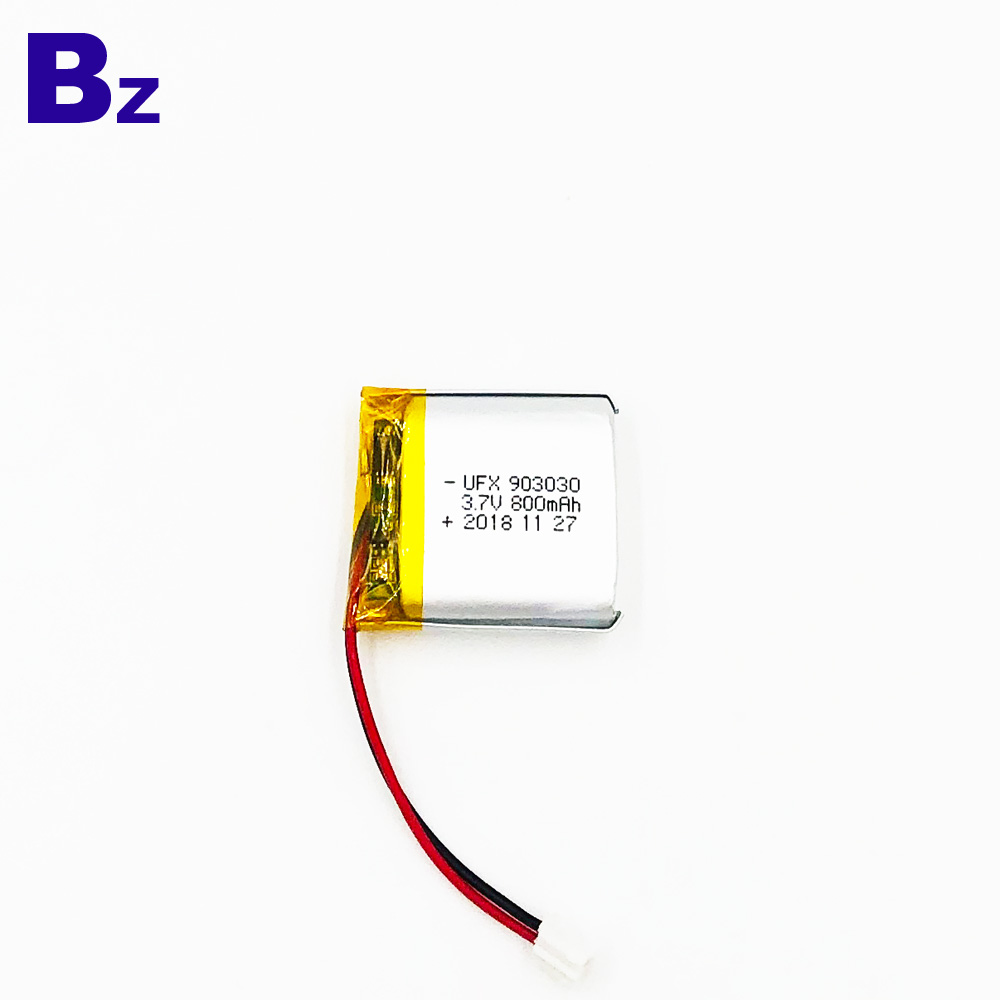

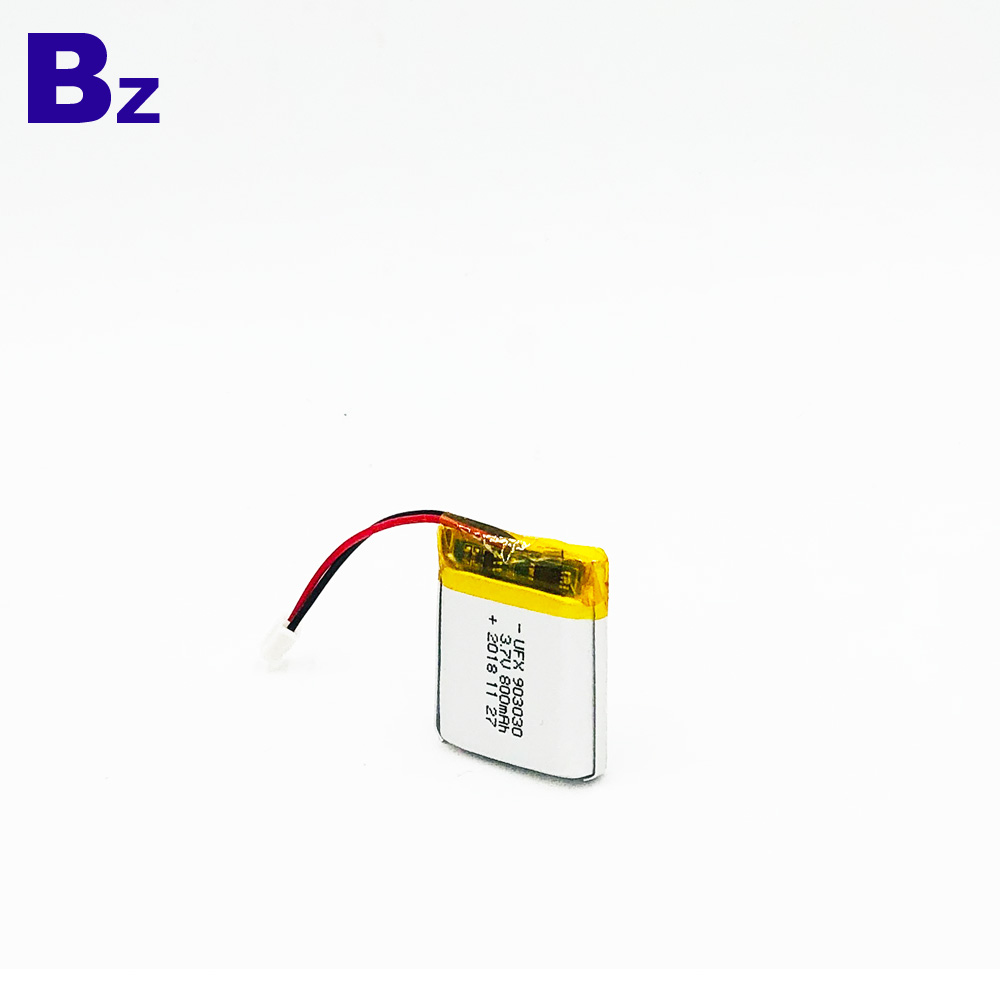

태아 교육 악기에 대 한 높은 전원 충전식 Lipo 배터리 - UFX 903030 800mAh 3.7V 리튬 폴리머 배터리

$1.50
In stock
SKU
UFX 903030

가격 : US $ 1.2-1.5 / 암페어
Min. 주문 : 2,000 암페어
주문 하시려면 저희에게 문의하십시오!

  •      원산지 : 중국 광둥, 광동
         브랜드 이름 : UFX
         모델 번호 : 903030
         유형 : Li 중합체
         정격 전압 : 3.7V
         크기 : 9 * 30 * 32mm
         정격 용량 : 800mAh
         제품 이름 : UFX 903030 리튬 이온 배터리
         보증 기간 : 1 년
         무게 : 17g
         사이클 수명 : 500 회
         신청 : 산전 교육 장치
         인증서 : UN38.3 / CE / MSDS / ROHS
         지불 : Paypal.TT.Escrow.Western Union
         최대 충전 전류 : 1C

리튬 이온 배터리


UFX 903030 800mAh 3.7V 리튬 폴리머 배터리

903030 800mAh 3.7V 리튬 폴리머 배터리

800mAh 3.7V 리튬 폴리머 배터리

태아 교육 악기 Lipo 배터리 800mAh

태아 교육 악기 Lipo 배터리

태아 교육 악기에 대 한 높은 전원 충전식 Lipo 배터리

Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

820mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

800mAh

2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of

3.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

4.2±0.03V



5

Internal Impedance

≤115mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 4.2V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 3.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 4.2V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 3.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max32mm

Width: max30mm
Thickness: max9mm

Initial  Dimension
