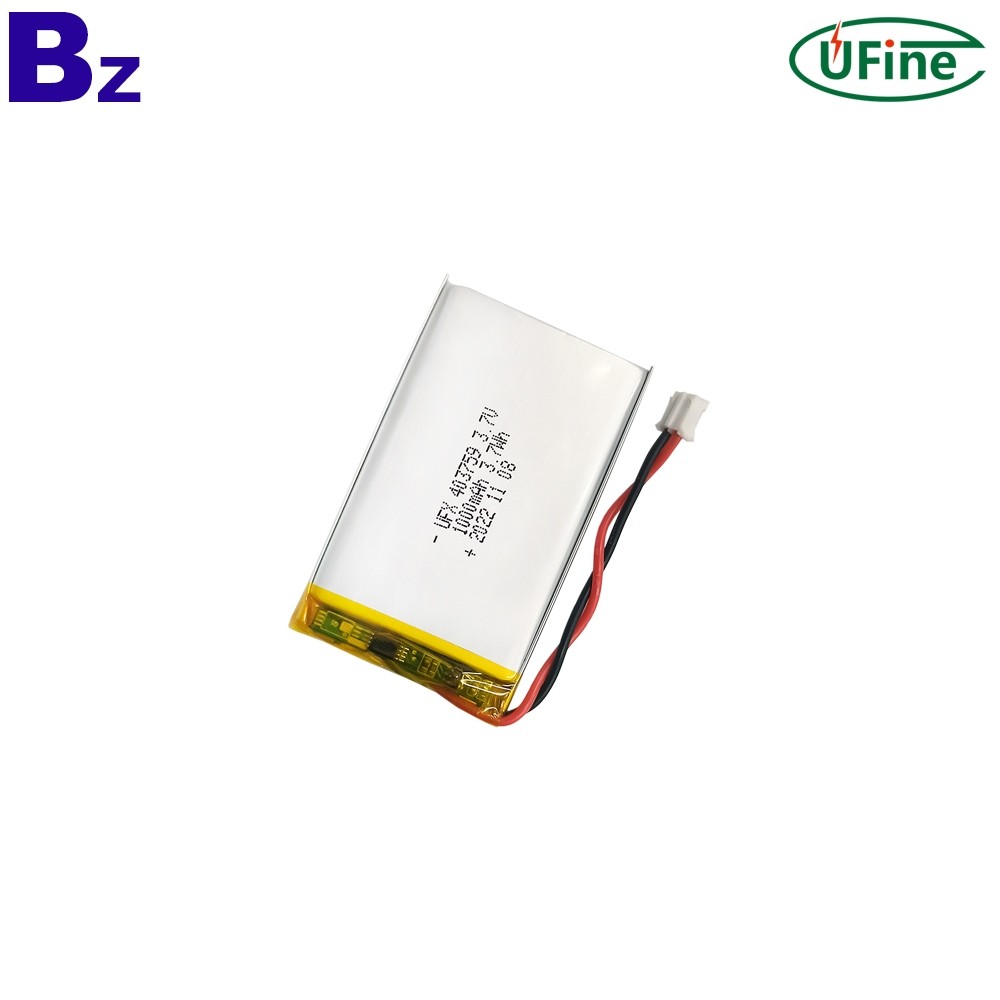

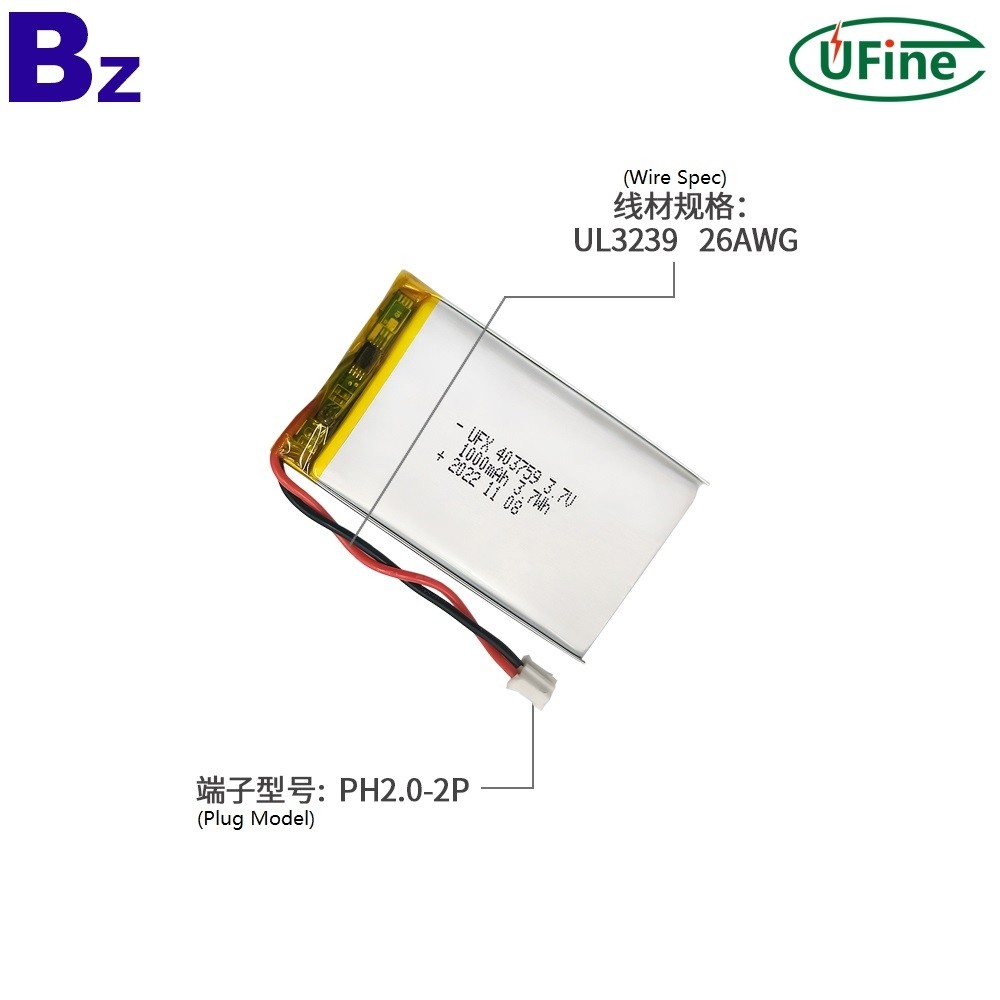

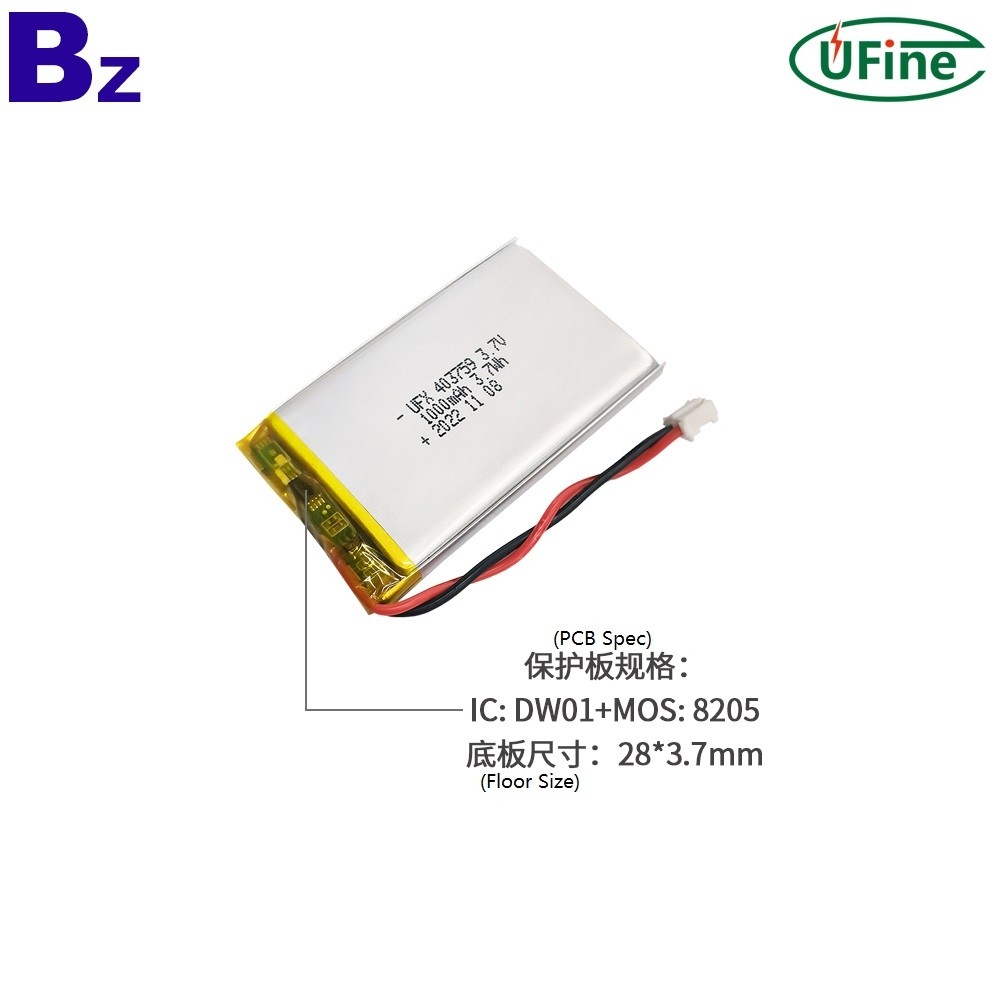

중국 리튬 이온 셀 공장 전문 맞춤형 UFX 403759 3.7V 1000mAh 리튬 폴리머 배터리

$1.60
In stock
SKU
UFX 403759 3.7V 1000mAh

가격 : US $ 1.2-1.5 / 암페어
Min. 주문 : 2,000 암페어
주문 하시려면 저희에게 문의하십시오!

     원산지: 중국 광동
     브랜드 이름: UFX
     모델 번호: 403759
     유형: 리튬 폴리머
     공칭 전압: 3.7V
     크기: 4*37*61mm
     공칭 용량: 1000mAh
     제품 이름: UFX 403759 리튬 이온 배터리
     보증: 1년
     무게: 18g
     주기 생활: 500배
     응용 프로그램: 아로마 테라피 기계 배터리
     인증서: KC
     지불: Paypal.TT.Escrow.Western Union
     최대 충전 전류: 1C



리튬 이온 배터리


전문 맞춤형 리튬 이온 셀

중국 리튬 이온 셀 공장

403759 3.7V 1000mAh 리튬 폴리머 배터리


Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

1020mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

1000mAh

2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of

3.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

4.2±0.03V



5

Internal Impedance

≤115mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 4.2V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 3.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 4.2V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 3.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max61mm

Width: max37mm
Thickness: max4mm

Initial  Dimension
