고품질 충전식 GPS 추적기 Lipo 배터리 BZ 503442 3.7V 750mAh 리튬 폴리머 배터리

$1.30
In stock
SKU
BZ 503442 750mAh

가격 : US $ 1.2-1.5 / 암페어
Min. 주문 : 2,000 암페어
주문 하시려면 저희에게 문의하십시오!

     원산지 : 광동, 중국
     브랜드 이름 : BZ
     모델 번호 : 503442
     유형 : 리튬 폴리머
     명목상 전압 : 3.7V
     크기 : 5 * 34 * 44mm
     공칭 용량 : 750mAh
     제품 이름 : BZ 503442 리튬 폴리머 배터리
     보증 : 1 Year
     무게 : 14g
     주기 생활 : 500Times
     신청 : GPS Tracker Battery
     증명서 : CE / ROHS / MSDS / UN38.3
     지불 : Paypal.TT.Escrow.Western Union
     최대 충전 전류 : 1C

리튬 이온 배터리

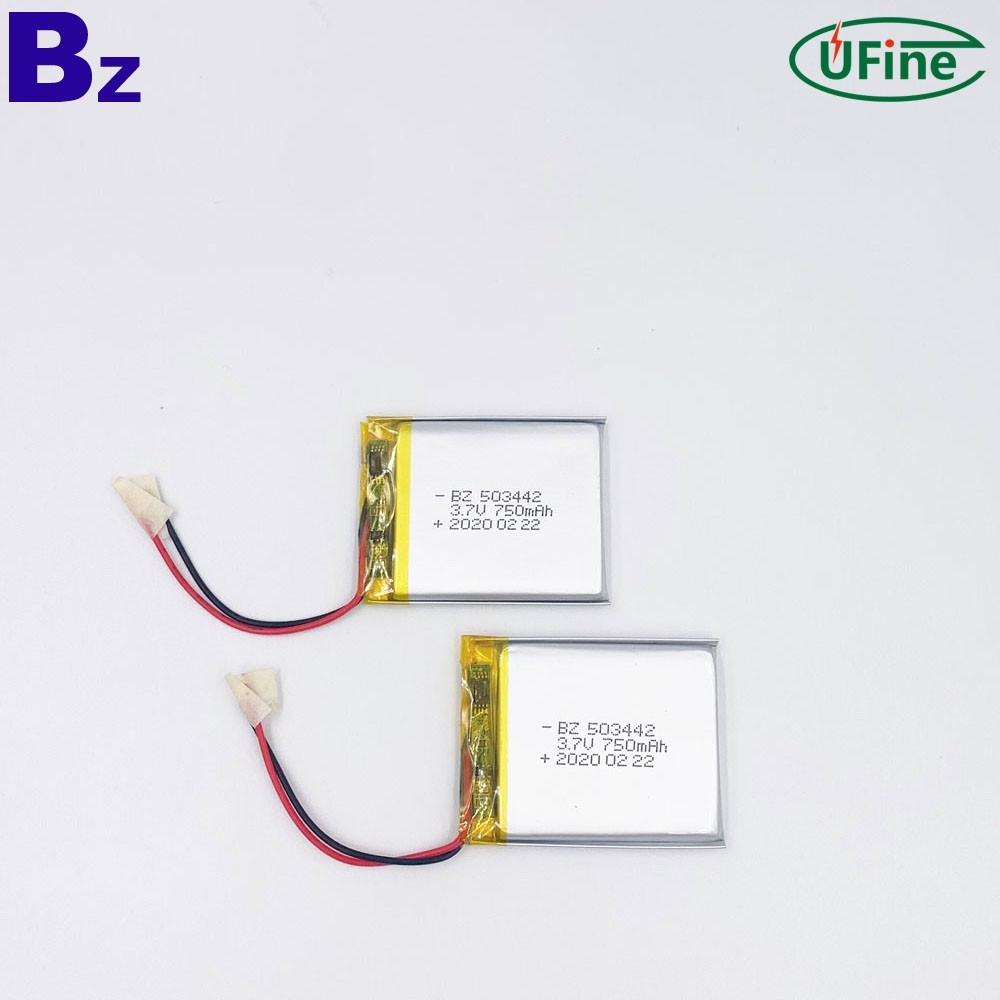

750mAh 충전식 GPS 추적기 Lipo 배터리

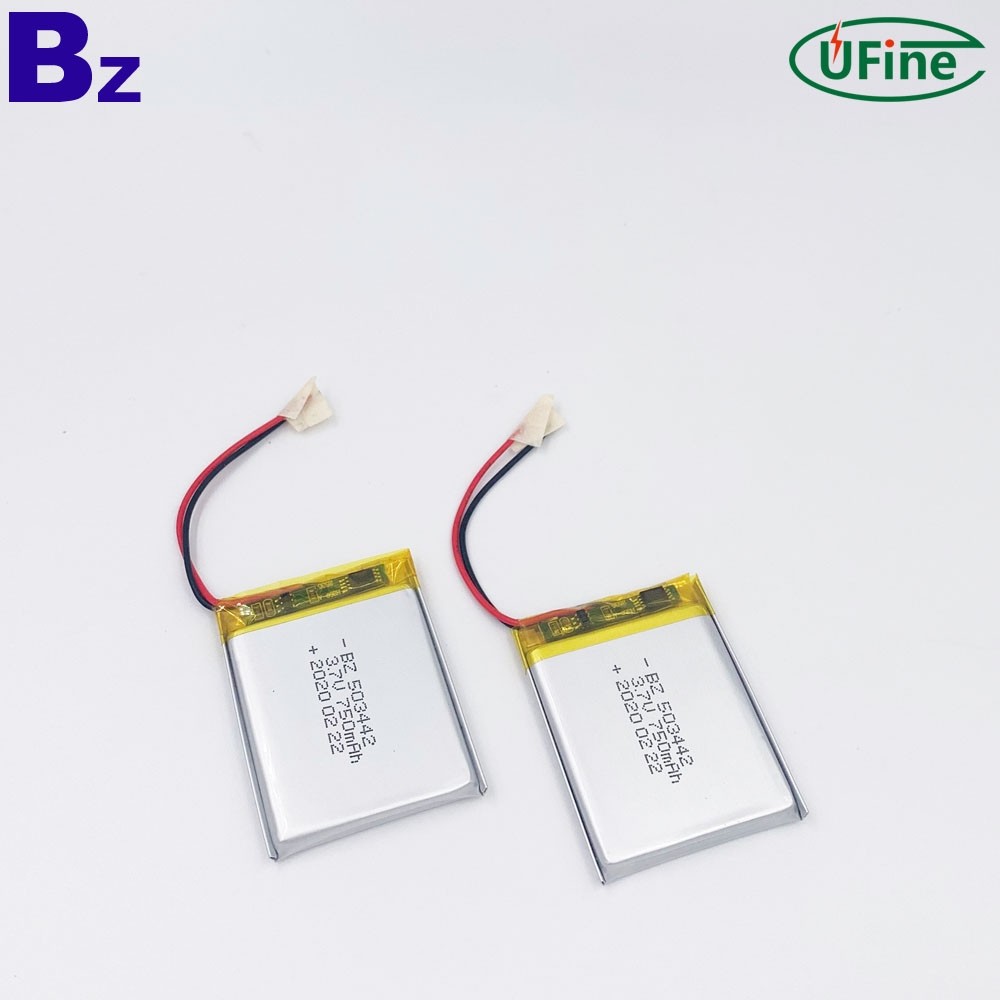

503442 3.7V 750mAh 리튬 폴리머 배터리

고품질 750mAh 리튬 폴리머 배터리


Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

770mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

750mAh

2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of

3.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

4.2±0.03V



5

Internal Impedance

≤175mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 4.2V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 3.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 4.2V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 3.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max44mm

Width: max34mm
Thickness: max5mm

Initial  Dimension
