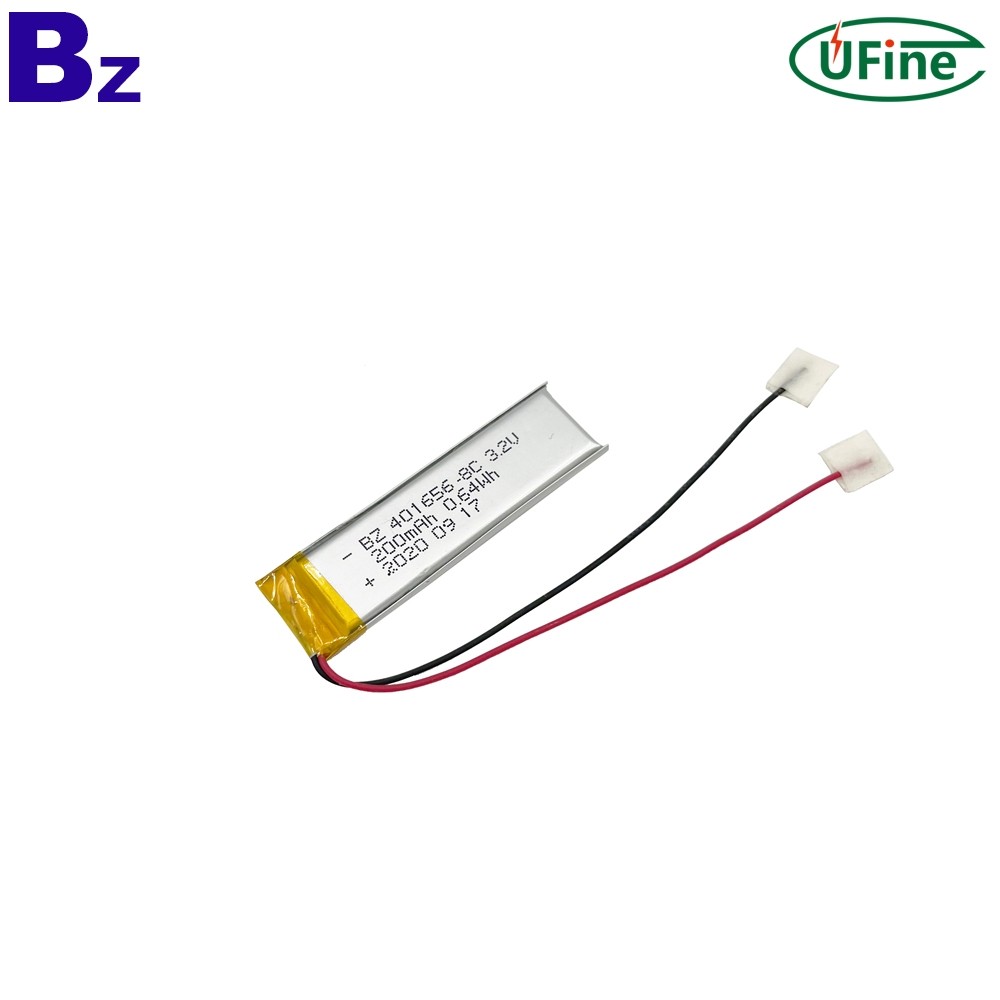

리튬 인산철 셀 공장 사용자 정의 전자 담배 배터리 BZ 401656 3.2V 200mAh 8C 방전 LiFePO4 배터리

$2.00
In stock
SKU
BZ 401656 3.2V 200mAh 8C

가격 : US $ 1.2-1.5 / 암페어
Min. 주문 : 2,000 암페어
주문 하시려면 저희에게 문의하십시오!

     원산지: 중국 광동
     브랜드 이름: BZ
     모델 번호: 401656
     유형: LiFePO4
     공칭 전압: 3.2V
     크기: 4*16*58mm
     공칭 용량: 200mAh
     제품 이름: BZ 401656-8C LiFePO4 배터리
     보증: 1년
     무게: 7g
     주기 수명: 1000회 > 90%
     응용 프로그램: 전자 담배 LiFePO4 배터리
     인증서: CE/RoHS/UN38.3/MSDS/KC
     지불: Paypal.TT.Escrow.Western Union
     최대 충전 전류: 1C



리튬 이온 배터리


리튬 인산철 셀 공장 사용자 정의 3.2V 200mAh 배터리

200mAh 3.2V 8C 방전 전자 담배 배터리

401656 3.2V 200mAh 8C 방전 LiFePO4 배터리


Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

210mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

200mAh

2

Nominal Voltage

3.2V

Mean Operation Voltage

3

Voltage at end of

2.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

3.6±0.03V



5

Internal Impedance

≤195mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 3.6V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 2.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 3.6V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 2.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

8 C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -10~80



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

Length: max58mm

Width: max16mm
Thickness: max4mm

Initial  Dimension
