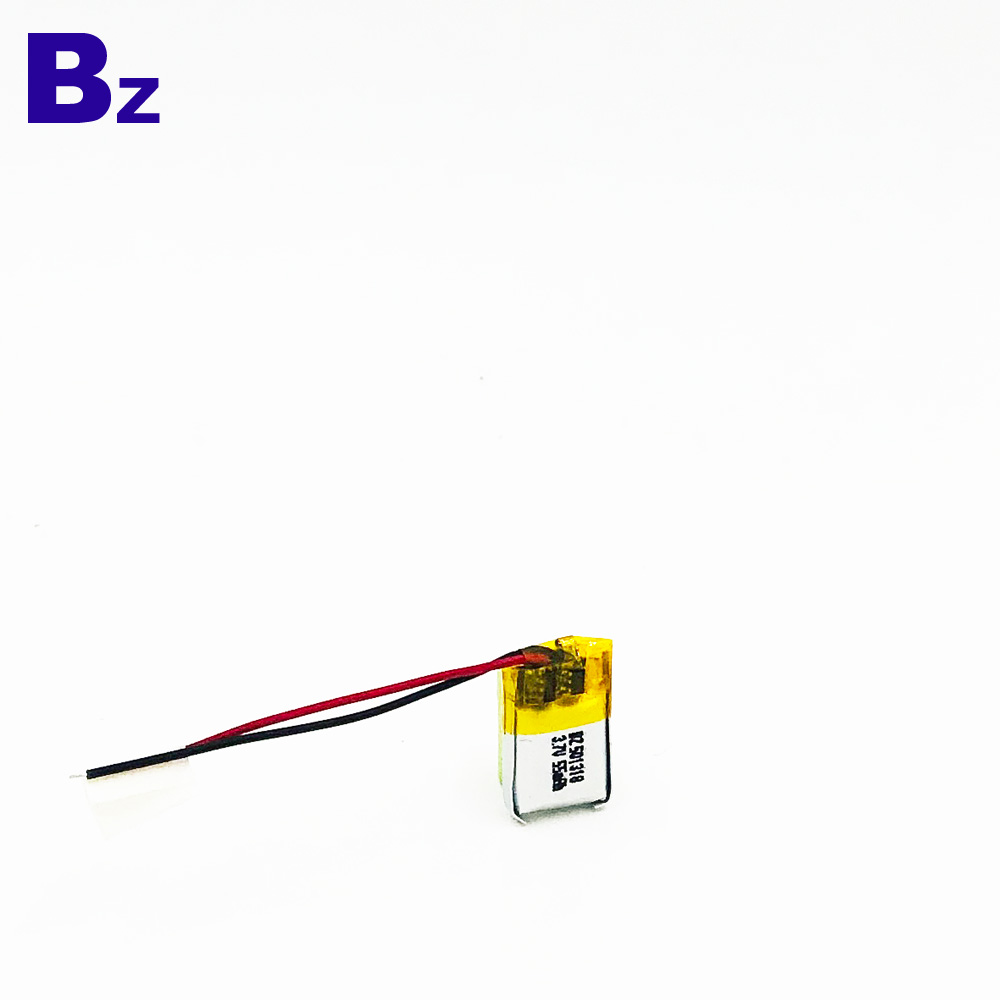

포지셔너 용 미니 충전식 배터리 BZ 501318 UL1642 증명서를 가진 55mAh 3.7V 리튬 중합체 건전지

$1.00
In stock
SKU
BZ 501318

FOB 가격 : US $ 1.2-1.5 / 암페어
최소 주문 수량 : 1000 Ampere
주문 문의하시기 바랍니다!

  •      원산지 : 중국 광동
         유명 상표 : BZ
         모델 번호 : 501318
         유형 : 리튬 폴리머
         명목상 전압 : 3.7V
         크기 : 5 * 13 * 20mm
         공칭 용량 : 55mAh
         제품 이름 : BZ 501318 리튬 이온 배터리
         보증 : 1 년
         무게 : 1.5g
         사이클 수명 : 500 회
         신청 : 노인 거주
         인증 : UL1642
         지불 : Paypal.TT.Escrow.Western Union
         최대 충전 전류 : 1C

리튬 이온 배터리

501318 55mAh 3.7V 리튬 중합체 건전지

포지셔너 용 미니 충전식 배터리 55mAh

UL1642 인증 충전 배터리

Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

60mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

55mAh

2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of

3.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

4.2±0.03V



5

Internal Impedance

≤675mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 4.2V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 3.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 4.2V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 3.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max20mm

Width: max13mm
Thickness: max5mm

Initial  Dimension
