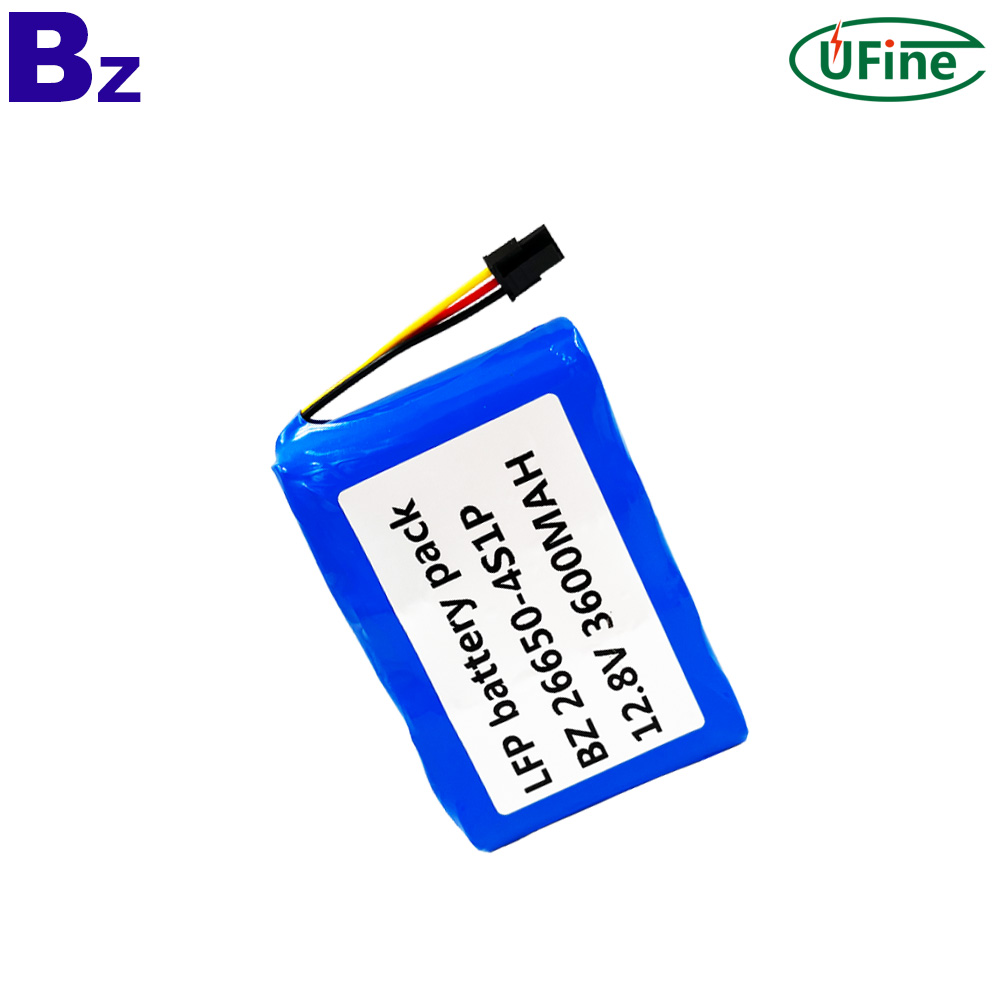

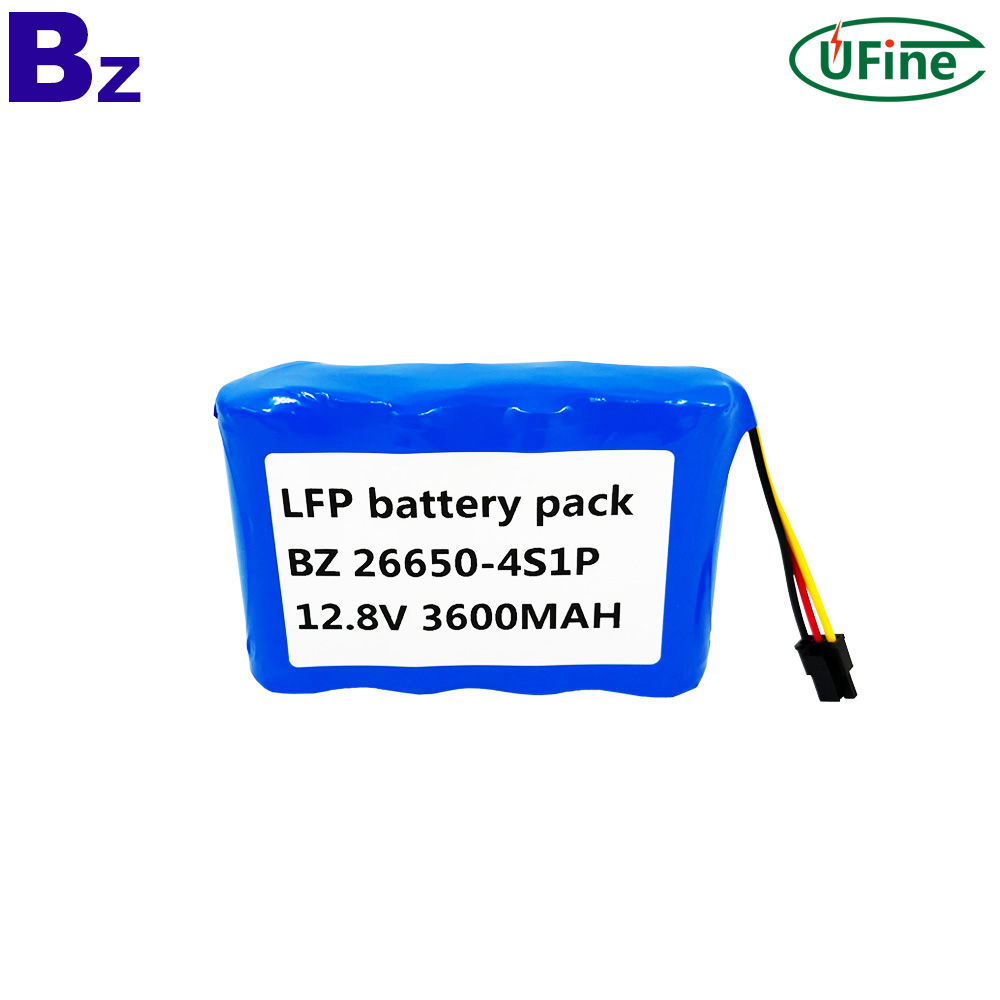

BZ 26650-4S1P 12.8V 3600mAh LiFePO4 충전식 배터리 팩 태양광/AGV/의료 장비용
가격 : US $ 1.2-1.5 / 암페어
Min. 주문 : 2,000 암페어
주문 하시려면 저희에게 문의하십시오!
브랜드 이름: BZ
모델 번호: 26650-4S
유형: LiFePO4
정격 전압: 12.8V
크기: 27*110*70mm
정격 용량: 3600mAh
제품 이름: 26650 배터리
보증: 1년
무게: 400g
사이클 수명: 1000회
용량: 3600mAh
셀 전압: 3.2V
용도: 의료 장비
인증서: RoHS/MSDS
결제: Paypal.TT.Escrow.Western Union
최대 충전 전류: 1C
Product Parameters
|
No. |
Item |
General Parameter |
Remark |
|
|
1 |
Rated Capacity |
Typical |
3600mAh |
Standard discharge(0.2C C5A) after Standard charge |
|
Minimum |
3600mAh |
|||
|
2 |
Nominal Voltage |
12.8V |
Mean Operation Voltage |
|
|
3 |
Voltage at end of |
8.0V |
Discharge Cut-off Voltage |
|
|
Discharge |
||||
|
4 |
Charging Voltage |
14.6±0.03V |
||
|
5 |
Internal Impedance |
≤85mΩ |
Internal resistance measured at AC 1KHZ after 50% charge |
|
|
The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times |
||||
|
6 |
Standard charge |
Constant Current 0.2C5A |
Charge time : Approx 6h |
|
|
Constant Voltage 14.6V |
||||
|
0.01 C5A cut-off |
||||
|
7 |
Standard discharge |
Constant current 0.2 C5A |
||
|
end voltage 8.0V |
||||
|
8 |
Fast charge |
Constant Current 0.5C5A |
Charge time : Approx 2.5h |
|
|
Constant Voltage 14.6V |
||||
|
0.01 C5A cut-off |
||||
|
9 |
Fast discharge |
Constant current 0.5C5A |
||
|
end voltage 8.0V |
||||
|
10 |
Maximum Continuous Charge Current |
1 C5A |
||
|
11 |
Maximum Continuous Discharge Current |
1C5A |
||
|
12 |
Operation Temperature Range |
Charge: 0~45℃ |
60±25%R.H. |
|
|
Bare Cell |
||||
|
Discharge: -20~60℃ |
||||
|
13 |
Storage Temperature Range |
Less than 1 year: -20~25℃ |
60±25%R.H. |
|
|
less than 3 months: -20~40℃ |
at the shipment state |
|||
|
14 |
Pack Dimension |
High: max70mm Width: max110mm |
Initial Dimension |
|
