공유 전원 은행 배터리에 적합 KC 증명서를 가진 UFX 104060 2800mAh 3.7V Li 중합체 건전지

$3.50

In stock

SKU

UFX 104060

가격 : US $ 1.2-1.5 / 암페어
Min. 주문 : 2,000 암페어
주문 하시려면 저희에게 문의하십시오!

Benzo Energy • UFine Technology' Lithium battery test laboratory

공유 전원 은행 용 2800mAh 배터리

UFX 104060 3.7V 리튬 폴리머 배터리

104060 3.7V 리튬 폴리머 배터리

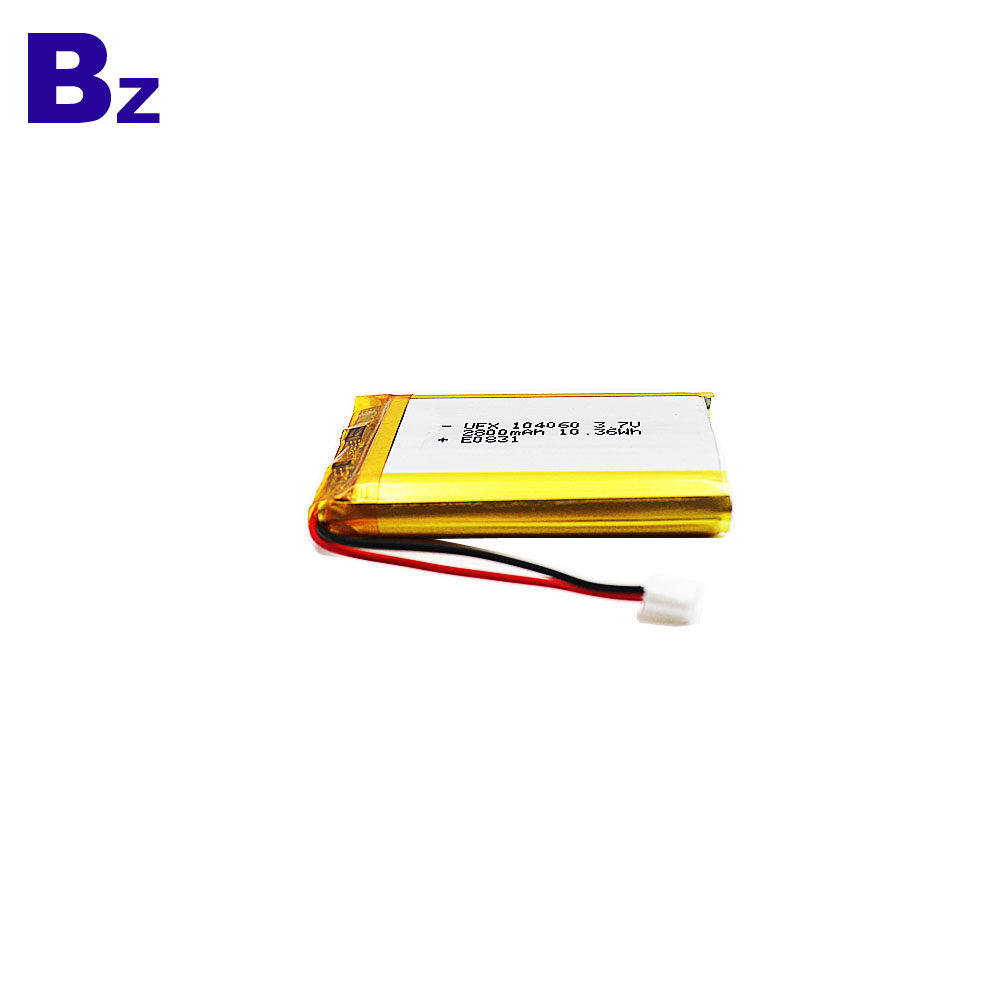

3.7V 리튬 폴리머 배터리

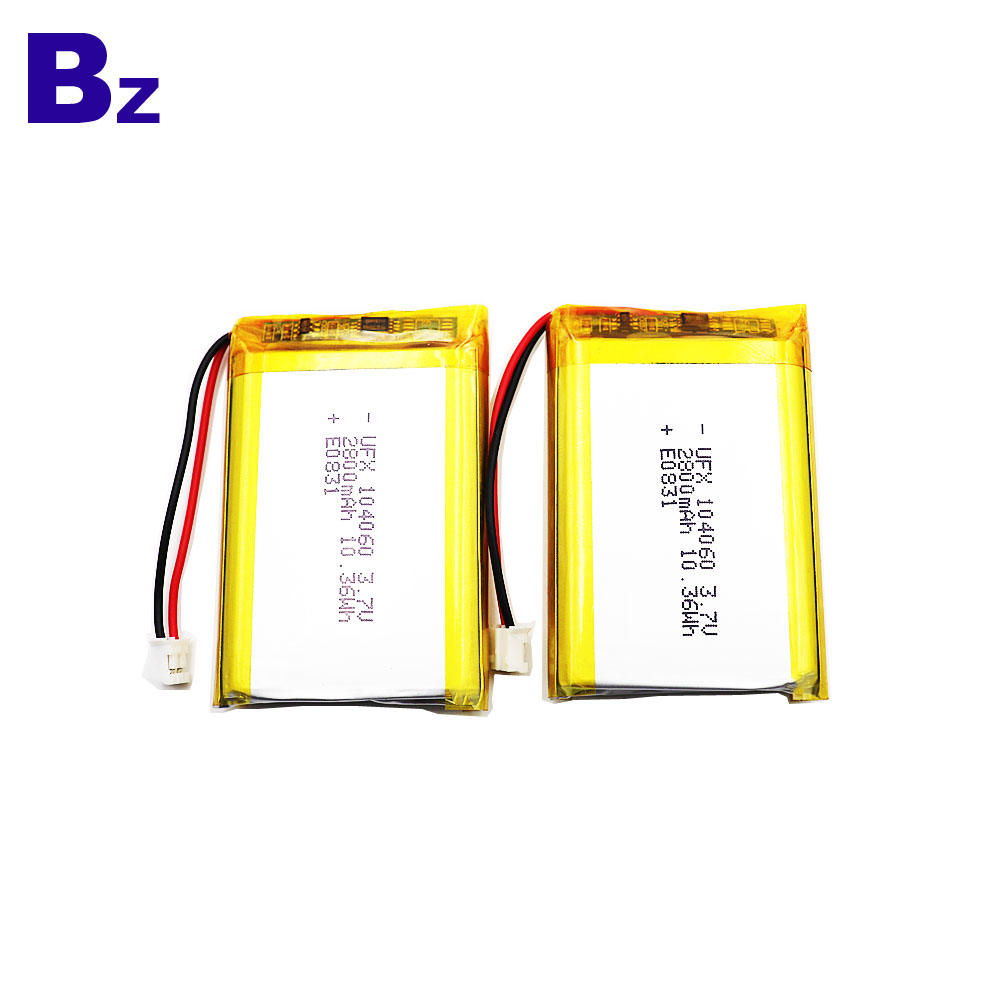

KC 인증 리튬 폴리머 배터리가 장착 된 2800mAh

Product Parameters

No.	Item	General Parameter		Remark
1	Rated Capacity	Typical	2850mAh	Standard discharge(0.2C C₅A) after Standard charge
		Minimum	2800mAh
2	Nominal Voltage	3.7V		Mean Operation Voltage
3	Voltage at end of	3.0V		Discharge Cut-off Voltage
	Discharge
4	Charging Voltage	4.2±0.03V
5	Internal Impedance	≤115mΩ		Internal resistance measured at AC 1KH_Zafter 50% charge
				The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times
6	Standard charge	Constant Current 0.2C₅A		Charge time : Approx 6h
		Constant Voltage 4.2V
		0.01 C₅A cut-off
7	Standard discharge	Constant current 0.2 C₅A
		end voltage 3.0V
8	Fast charge	Constant Current 0.5C₅A		Charge time : Approx 2.5h
		Constant Voltage 4.2V
		0.01 C₅A cut-off
9	Fast discharge	Constant current 0.5C₅A
		end voltage 3.0V
10	Maximum Continuous Charge Current	1 C₅A
11	Maximum Continuous Discharge Current	1C₅A
12	Operation Temperature Range	Charge: 0~45℃		60±25%R.H.
				Bare Cell
		Discharge: -20~60℃
13	Storage Temperature Range	Less than 1 year: -20~25℃		60±25%R.H.
		less than 3 months: -20~40℃		at the shipment state
14	Pack Dimension	High: max62mm Width: max40mm Thickness: max10mm		Initial Dimension
