중국 리튬 이온 전지 공장 조명 장치용 전문 사용자 지정 18650 2S2P 7.4V 5200mAh 리튬 이온 배터리 팩

$8.10
In stock
SKU
18650 2S2P 7.4V 5200mAh

가격 : US $ 1.2-1.5 / 암페어
Min. 주문 : 2,000 암페어
주문 하시려면 저희에게 문의하십시오!

     원산지: 중국 광동
     브랜드 이름: BZ
     모델 번호: 18650-2S2P
     유형: 리튬 이온
     공칭 전압: 7.4V
     크기: 19*37*140mm
     공칭 용량: 5200mAh
     제품 이름: BZ 18650-2S2P 리튬 이온 배터리
     보증: 1년
     무게: 195g
     주기 생활: 500배
     응용 프로그램: 조명 장치
     인증서: UN38.3/CE/MSDS/ROHS
     지불: Paypal.TT.Escrow.Western Union
     최대 충전 전류: 1C



리튬 이온 배터리

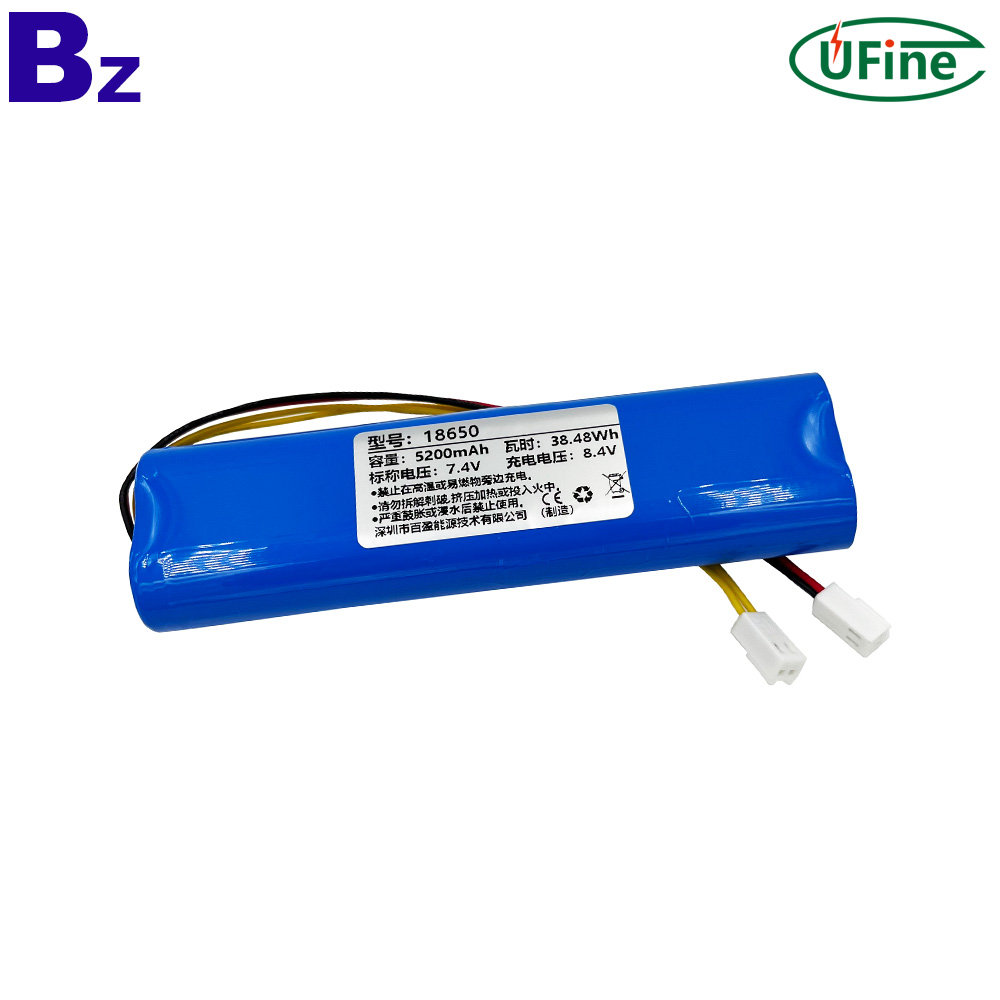

전문 맞춤형 7.4V 리튬 이온 배터리 팩

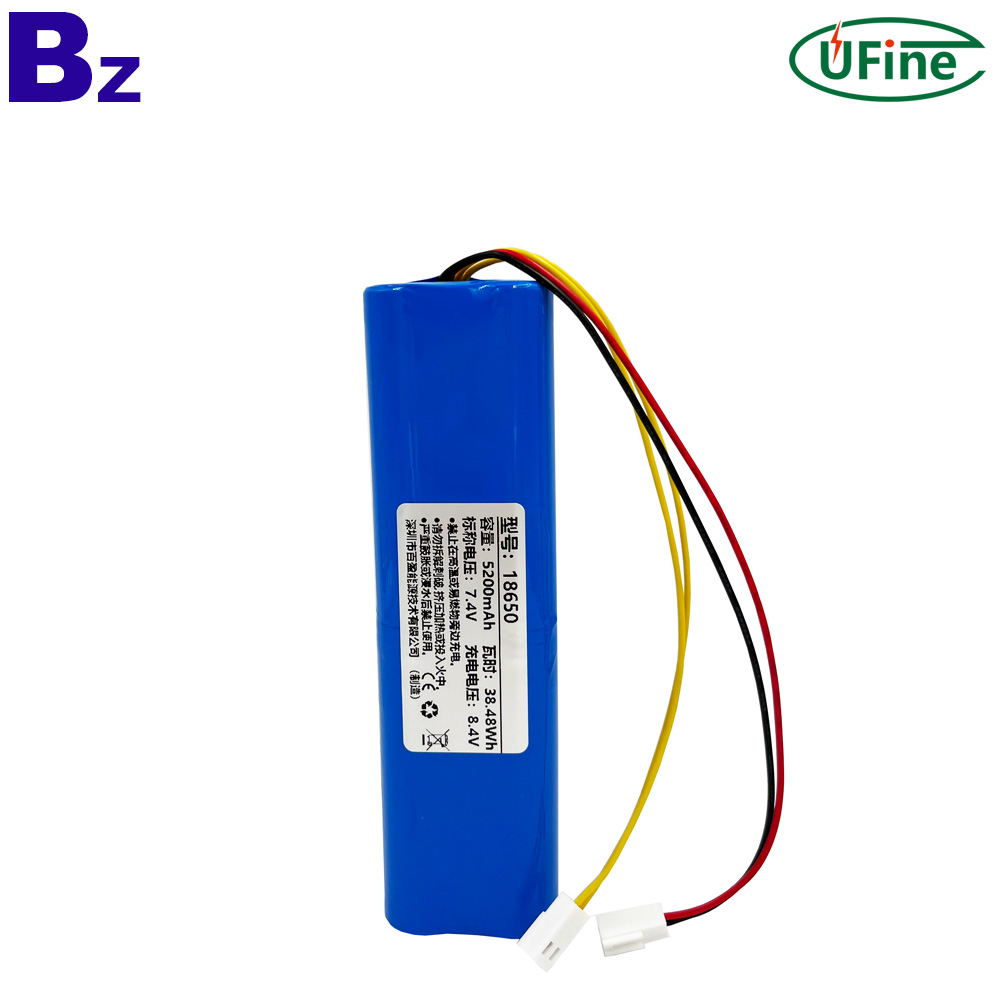

18650 2S2P 7.4V 5200mAh 배터리

조명 장치용 5200mAh 리튬 이온 배터리 팩


Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

5230mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

5200mAh

2

Nominal Voltage

7.4V

Mean Operation Voltage

3

Voltage at end of

6.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

8.4±0.03V



5

Internal Impedance

≤115mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 8.4V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 6.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 8.4V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 6.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max140mm

Width: max37mm
Thickness: max19mm

Initial  Dimension
