중국 UL 인증 리튬 배터리 공급 업체 맞춤형 디지털 제품 용 배터리 BZ 802528 480mAh 3.7V LiPo 건전지 KC 증명서를 가진

$1.35
In stock
SKU
BZ 802528

FOB 가격 : US $ 1.2-1.5 / 암페어
최소 주문 수량 : 1000A /
주문 문의하시기 바랍니다!

     원산지 : 중국 광동
     유명 상표 : BZ
     모델 번호 : 802528
     유형 : 리튬 폴리머
     공칭 전압 : 3.6V
     크기 : 8 * 25 * 30mm
     공칭 용량 : 480mAh
     제품 이름 : 802528 리튬 이온 배터리
     보증 : 1 년
     무게 : 15g
     사이클 수명 : 500 회
     용량 : 480mAh
     전압 : 3.7V
     응용 : 디지털 제품
     증명서 : CE / RoHS / UN38.3 / MSDS / UL
     지불 : Paypal.TT.Escrow.Western Union
     최대 충전 전류 : 1C

리튬 이온 배터리

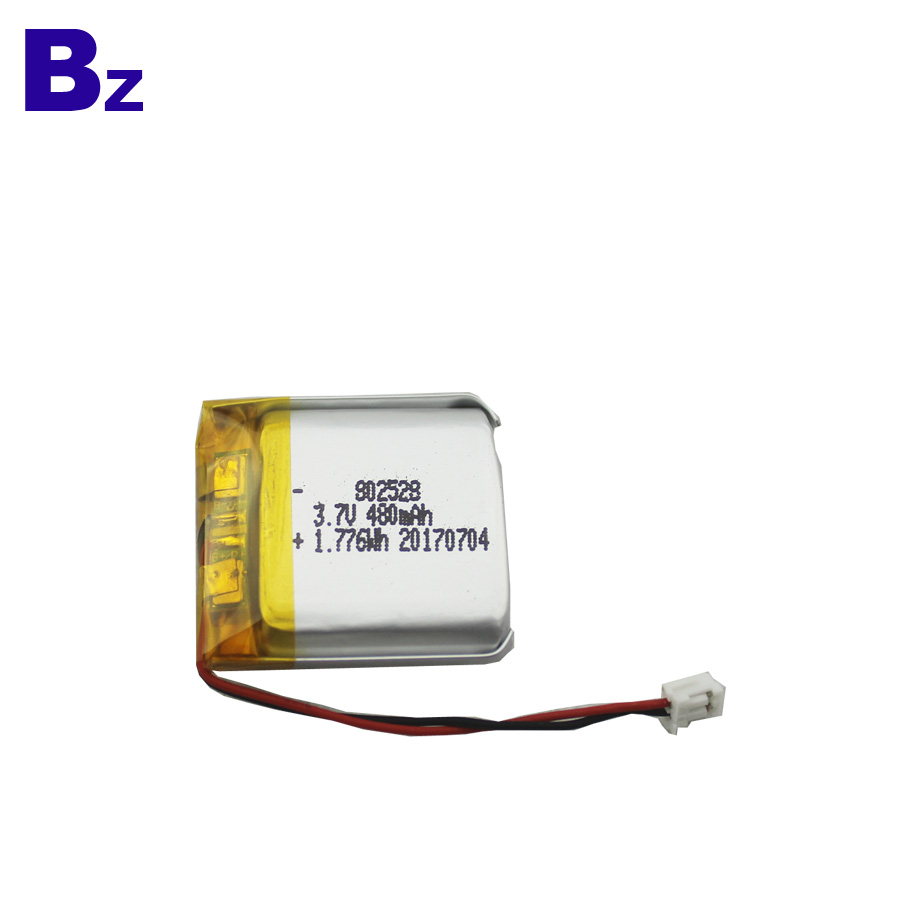

802528 480mAh 3.7V LiPo 건전지

802528 480mAh 3.7V 건전지

480mAh 3.7V LiPo 건전지 KC 증명서를 가진

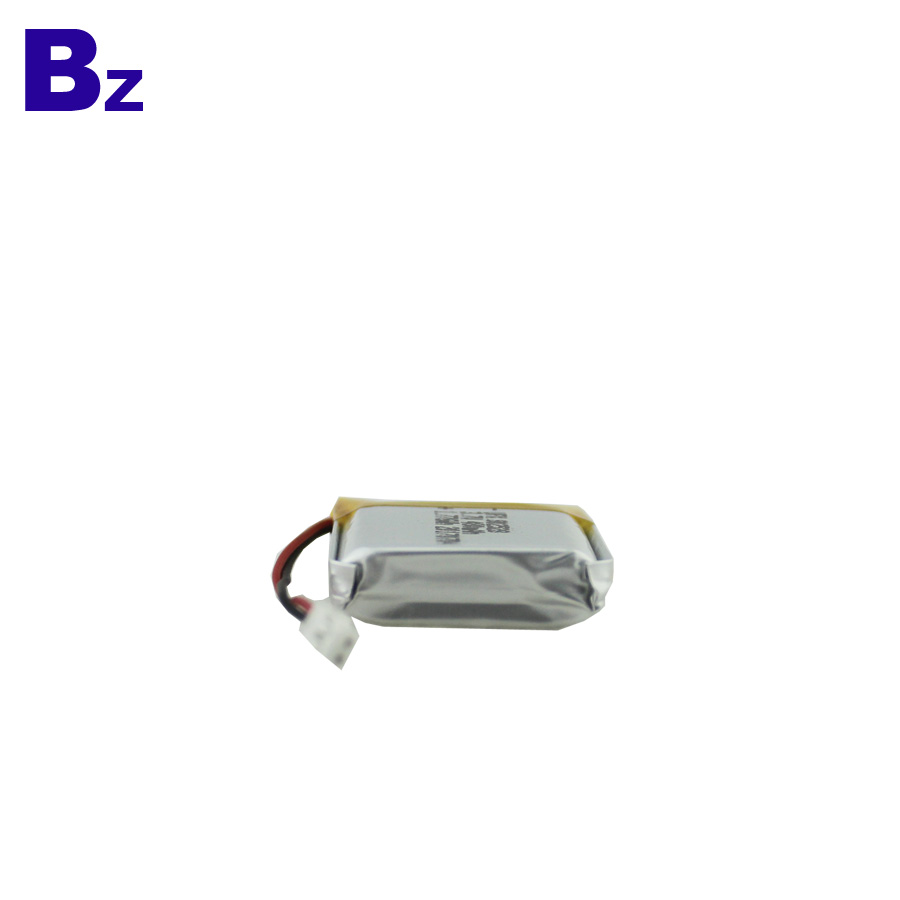

디지털 제품 용 UL 인증 배터리

Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

490mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

480mAh

2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of

3.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

4.2±0.03V



5

Internal Impedance

≤50mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 4.2V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 3.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 4.2V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 3.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max30mm

Width: max25mm
Thickness: max8mm

Initial  Dimension
