수소 부유 한 컵 BZ 502065 를위한 뜨거운 판매 리튬 중합체 건전지 KC 증명서를 가진 700mAh 3.7V Lipo 건전지

$1.55
In stock
SKU
BZ 502065

가격 : US $ 1.2-1.5 / 암페어
Min. 주문 : 2,000 암페어
주문 하시려면 저희에게 문의하십시오!

  •      원산지 : 중국 광둥, 광동
         브랜드 이름 : BZ
         모델 번호 : 502065
         유형 : Li 중합체
         정격 전압 : 3.7V
         크기 : 5 * 20 * 67mm
         공칭 용량 : 700mAh
         제품 이름 : BZ 502065 리튬 이온 배터리
         보증 기간 : 1 년
         무게 : 14g
         사이클 수명 : 500 회
         응용 분야 : Water Cup Hydrogen Rich Cup
         인증서 : CE / RoHS / UN38.3 / MSDS / KC
         지불 : Paypal.TT.Escrow.Western Union
         최대 충전 전류 : 1C

리튬 이온 배터리

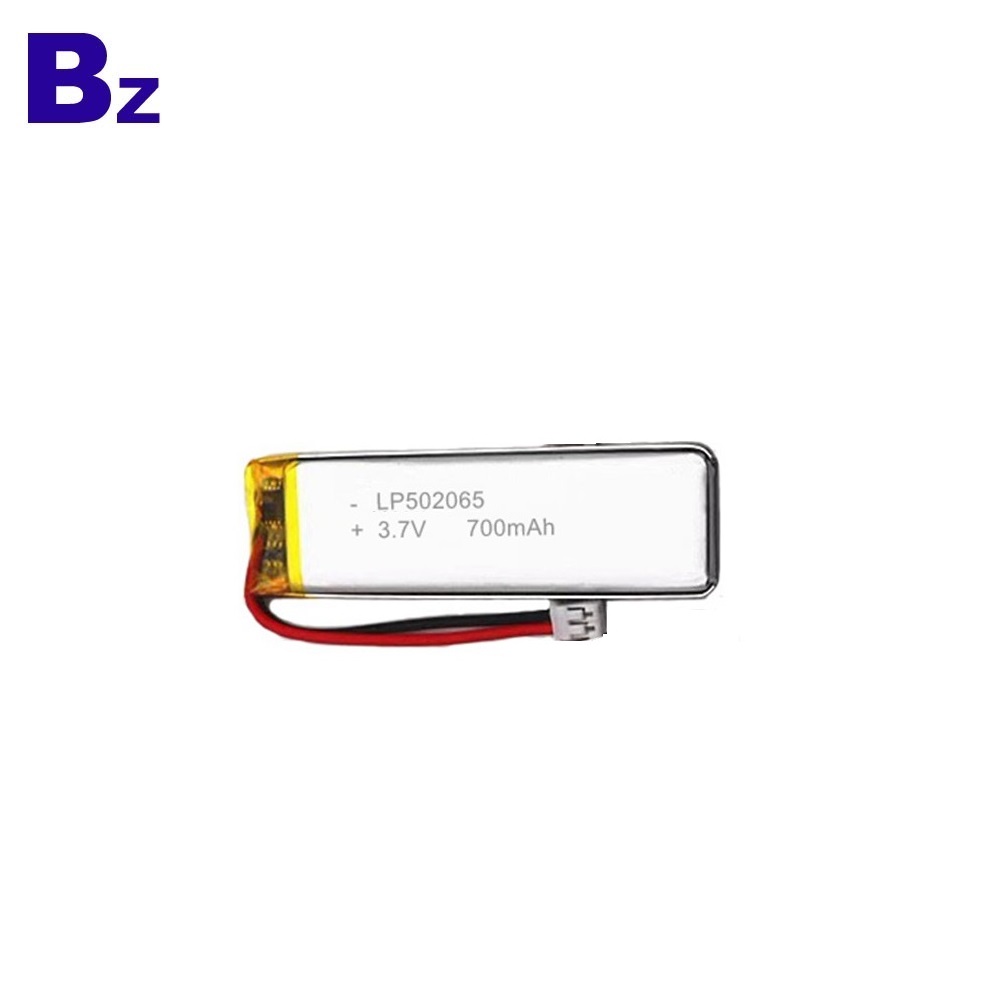

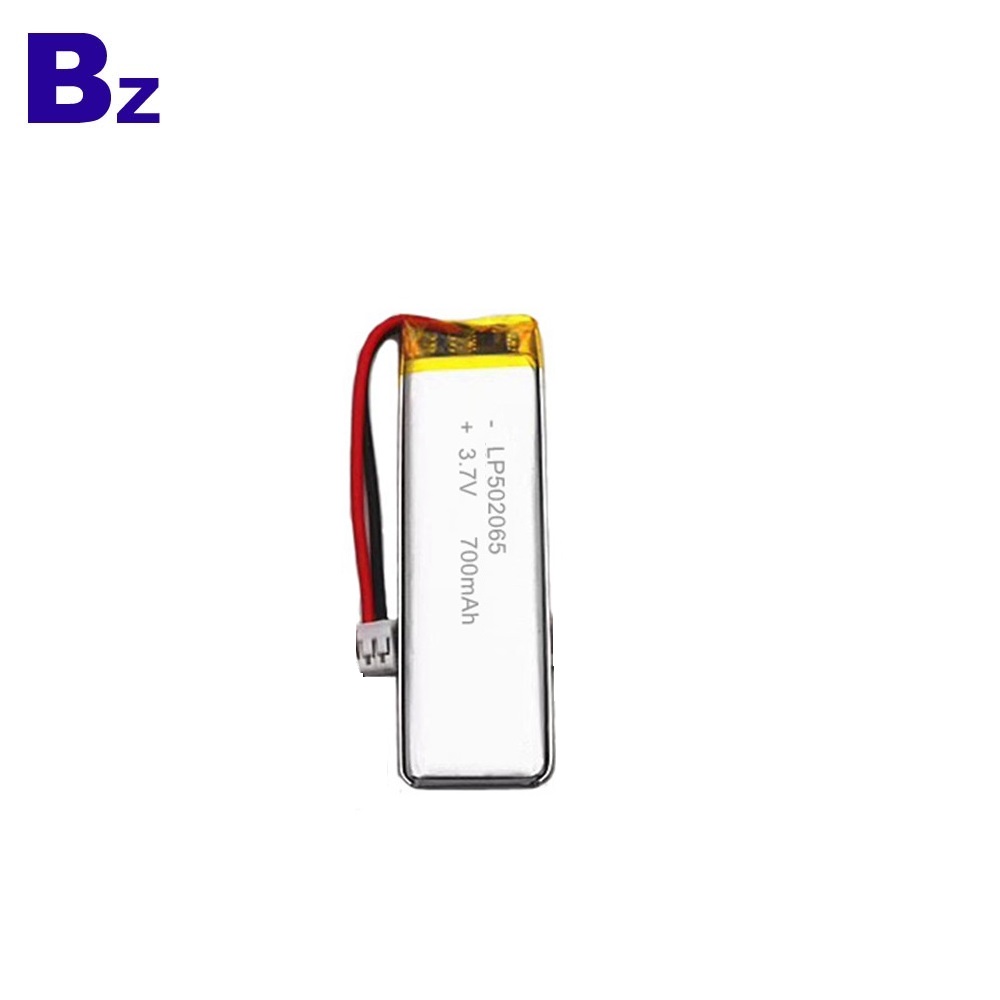

502065 700mAh 3.7V Lipo 배터리수소 리치 컵 용 700mAh 리튬 폴리머 배터리

KC 인증서가있는 700mAh Lipo 배터리

Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

720mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

700mAh

2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of

3.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

4.2±0.03V



5

Internal Impedance

≤165mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 4.2V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 3.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 4.2V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 3.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max67mm

Width: max20mm
Thickness: max5mm

Initial  Dimension
